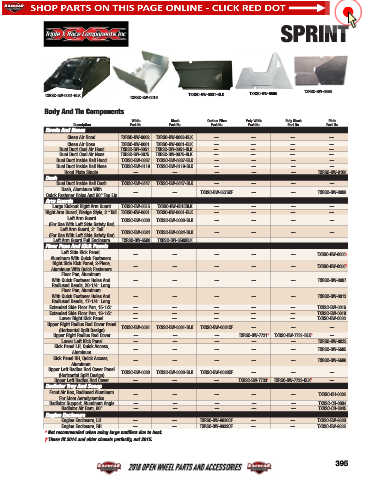

Page 396 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

SPRINT

TXRSC-BW-5685
TXRSC-BW-0051-BLK TXRSC-BW-0031-BLK TXRSC-BW-6599
TXRSC-BW-0016
Body And Tin Components
White Black Carbon Fiber Poly White Poly Black Plain
Description Part No. Part No. Part No. Part No. Part No. Part No.
Hoods And Noses
Clean Air Hood TXRSC-BW-0002 TXRSC-BW-0002-BLK — — — —
Clean Air Nose TXRSC-BW-0001 TXRSC-BW-0001-BLK — — — —
Dual Duct Cool Air Hood TXRSC-BW-0051 TXRSC-BW-0051-BLK — — — —
Dual Duct Cool Air Nose TXRSC-BW-0075 TXRSC-BW-0075-BLK — — — —
Dual Duct Inside Rail Hood TXRSC-BW-6837 TXRSC-BW-6837-BLK — — — —
Dual Duct Inside Rail Nose TXRSC-BW-6119 TXRSC-BW-6119-BLK — — — —
Hood Plate Single — — — — — TXRSC-BW-0100
Dash
Dual Duct Inside Rail Dash TXRSC-BW-6447 TXRSC-BW-6447-BLK — — — —
Dash, Aluminum With
Quick Fastener Holes And 90° Top Lip — — TXRSC-BW-8275CF — — TXRSC-BW-0008
Arm Guards
Large Kickout Right Arm Guard TXRSC-BW-6515 TXRSC-BW-6515BLK — — — —
Right Arm Guard, Wedge Style, 2 "Tall TXRSC-BW-0061 TXRSC-BW-0061-BLK — — — —
Left Arm Guard TXRSC-BW-0003 TXRSC-BW-0003-BLK — — — —
(For Use With Left Side Safety Bar)
Left Arm Guard, 2" Tall TXRSC-BW-0024 TXRSC-BW-0024-BLK — — — —
(For Use With Left Side Safety Bar)
Left Arm Guard Full Enclosure TXRSC-BW-6599 TXRSC-BW-6599BLK
Floor Pans And Kick Panels
Left Side Kick Panel, †
Aluminum With Quick Fasteners — — — — — TXRSC-BW-0005
Right Side Kick Panel, 2-Piece, — — — — — TXRSC-BW-0006 †
Aluminum With Quick Fasteners
Floor Pan, Aluminum
With Quick Fastener Holes And — — — — — TXRSC-BW-0007
Radiused Bends, 20-1/4" Long
Floor Pan, Aluminum
With Quick Fastener Holes And — — — — — TXRSC-BW-0013
Radiused Bends, 17-1/4" Long
Extended Side Floor Pan, 15-1/2" — — — — — TXRSC-BW-0016
Extended Side Floor Pan, 18-1/2" — — — — — TXRSC-BW-0018
Lower Right Kick Panel — — — — — TXRSC-BW-0030
Upper Right Radius Rod Cover Panel
(Horizontal Split Design) TXRSC-BW-0031 TXRSC-BW-0031-BLK TXRSC-BW-0031CF — — —
Upper Right Radius Rod Cover — — — TXRSC-BW-7731* TXRSC-BW-7731-BLK* —
Lower Left Kick Panel — — — — — TXRSC-BW-0032
Kick Panel LH, Quick Access, — — — — — TXRSC-BW-5685
Aluminum
Kick Panel RH, Quick Access,
Aluminum — — — — — TXRSC-BW-5686
Upper Left Radius Rod Cover Panel
(Horizontal Split Design) TXRSC-BW-0033 TXRSC-BW-0033-BLK TXRSC-BW-0033CF — — —
Upper Left Radius Rod Cover — — — TXRSC-BW-7733* TXRSC-BW-7733-BLK* —
Radiator Tray And Scoop
Front Air Box, Radiused Aluminum — — — — — TXRSC-CH-0003
For More Aerodynamics
Radiator Support, Aluminum Angle — — — — — TXRSC-CH-0004
Radiator Air Dam, 90° — — — — — TXRSC-CH-6345
Engine Enclosure
Engine Enclosure, LH — — TXRSC-BW-9830CF — — TXRSC-BW-9830
Engine Enclosure, RH — — TXRSC-BW-9832CF — — TXRSC-BW-9832
* Not recommended when using large mufflers due to heat.
† These fit 2014 and older chassis perfectly, not 2015.

395
