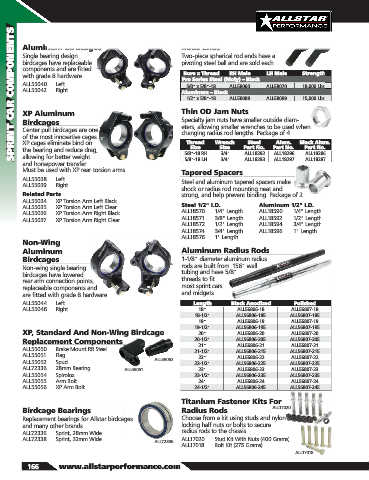

Page 168 - 2019 Allstar Performance Parts and Equipment Catalog

SPRINT CAR COMPONENTS

Aluminum Birdcages Rods Ends
Single bearing design Two-piece spherical rod ends have a
birdcages have replaceable pivoting steel ball and are sold each.
components and are fitted
with grade 8 hardware. Bore x Thread RH Male LH Male Strength
Pro Series Steel (Moly) – Black
ALL55040 ..... Left 5/8" x 5/8"-18 ALL58060 ALL58070 18,000 Lbs
ALL55042 ..... Right Aluminum – Black
1/2" x 5/8"-18 ALL58089 ALL58099 15,000 Lbs
XP Aluminum Thin OD Jam Nuts
Birdcages Specialty jam nuts have smaller outside diam-
eters, allowing smaller wrenches to be used when
Center pull birdcages are one changing radius rod lengths. Package of 4.
of the most innovative cages.
XP cages eliminate bind on Thread Wrench Steel Alum. Black Alum.
Size
the bearing and reduce drag, 5/8"-18 RH Size Part No. Part No. Part No.
ALL18292
3/4"
ALL18296
ALL18286
allowing for better weight 5/8"-18 LH 3/4" ALL18293 ALL18297 ALL18287
and horsepower transfer.
Must be used with XP rear torsion arms. Tapered Spacers
ALL55038 ..... Left Steel and aluminum tapered spacers make
ALL55039 ..... Right
shock or radius rod mounting neat and
Related Parts strong, and help prevent binding. Package of 2.
ALL55034 ..... XP Torsion Arm Left Black
ALL55035 ..... XP Torsion Arm Left Clear Steel 1/2" I.D. Aluminum 1/2" I.D.
ALL55036 ..... XP Torsion Arm Right Black ALL18570 ..... 1/4" Length ALL18590 ...... 1/4" Length
ALL55037 ..... XP Torsion Arm Right Clear ALL18571 ..... 3/8" Length ALL18592 ...... 1/2" Length
ALL18572 ..... 1/2" Length ALL18594 ...... 3/4" Length
ALL18574...... 3/4" Length ALL18596 ...... 1" Length
ALL18576 ..... 1" Length
Non-Wing
Aluminum Aluminum Radius Rods
Birdcages 1-1/8" diameter aluminum radius
rods are built from .156" wall
Non-wing single bearing
birdcages have lowered tubing and have 5/8"
rear arm connection points, threads to fit
replaceable components and most sprint cars
are fitted with grade 8 hardware. and midgets.
ALL55044 ..... Left Length Black Anodized Polished
ALL55046 ..... Right 18" ALL56806-18 ALL56807-18
18-1/2" ALL56806-185 ALL56807-185
19" ALL56806-19 ALL56807-19
19-1/2" ALL56806-195 ALL56807-195
XP, Standard And Non-Wing Birdcage 20" ALL56806-20 ALL56807-20
Replacement Components 20-1/2" ALL56806-205 ALL56807-205
21" ALL56806-21 ALL56807-21
ALL55050 ..... Brake Mount RR Steel 21-1/2" ALL56806-215 ALL56807-215
ALL55051 ..... Flag 22" ALL56806-22 ALL56807-22
ALL55052
ALL55052 ..... Spud 22-1/2" ALL56806-225 ALL56807-225
ALL72336 ..... 28mm Bearing ALL55051 23" ALL56806-23 ALL56807-23
ALL55054 ..... Spirolox 23-1/2" ALL56806-235 ALL56807-235
ALL55055 ..... Arm Bolt 24" ALL56806-24 ALL56807-24
ALL55056 ..... XP Arm Bolt 24-1/2" ALL56806-245 ALL56807-245
Titanium Fastener Kits For
Birdcage Bearings Radius Rods ALL17020
Replacement bearings for Allstar birdcages Choose from a kit using studs and nylon
and many other brands. locking half nuts or bolts to secure
ALL72336 ..... Sprint, 28mm Wide radius rods to the chassis.
ALL72338 ..... Sprint, 32mm Wide ALL17020...... Stud Kit With Nuts (400 Grams)
ALL72336
ALL17018 ...... Bolt Kit (275 Grams)
ALL17018
166 www.allstarperformance.com
