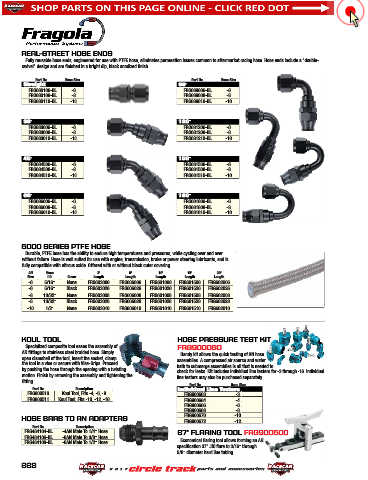

Page 339 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

REAL-STREET HOSE ENDS
Fully reusable hose ends, engineered for use with PTFE hose, eliminates permeation issues common to aftermarket racing hose. Hose ends include a “double-
swivel” design and are finished in a bright dip, black anodized finish.

Part No. Hose Size Part No. Hose Size
Straight 90°
FRG680106-BL -6 FRG689006-BL -6
FRG680108-BL -8 FRG689008-BL -8
FRG680110-BL -10 FRG689010-BL -10

30° 120°
FRG683006-BL -6 FRG681206-BL -6
FRG683008-BL -8 FRG681208-BL -8
FRG683010-BL -10 FRG681210-BL -10

45° 150°
FRG684506-BL -6 FRG681506-BL -6
FRG684508-BL -8 FRG681508-BL -8
FRG684510-BL -10 FRG681510-BL -10

60° 180°
FRG686006-BL -6 FRG681806-BL -6
FRG686008-BL -8 FRG681808-BL -8
FRG686010-BL -10 FRG681810-BL -10

6000 SERIES PTFE HOSE
Durable, PTFE hose has the ability to endure high temperatures and pressures, while cycling over and over
without failure. Hose is well suited for use with engine, transmission, brake or power steering lubricants, and is
fully compatible with nitrous oxide. Offered with or without black outer covering.
AN Hose 3' 6' 10' 15' 20'
Size I.D. Cover Length Length Length Length Length
-6 5/16" None FRG603006 FRG606006 FRG601006 FRG601506 FRG602006
-6 5/16" Black FRG603026 FRG606026 FRG601026 FRG601526 FRG602026
-8 13/32" None FRG603008 FRG606008 FRG601008 FRG601508 FRG602008
-8 13/32" Black FRG603028 FRG606028 FRG601028 FRG601528 FRG602028
-10 1/2" None FRG603010 FRG606010 FRG601010 FRG601510 FRG602010

KOUL TOOL HOSE PRESSURE TEST KIT
Specialized composite tool eases the assembly of FRG900060
AN fittings to stainless steel braided hose. Simply Handy kit allows the quick testing of AN hose
open clamshell of the tool, insert the socket, clamp assemblies. A compressed air source and water
the tool in a vise or secure with Vise-Grips. Proceed bath to submerge assemblies is all that is needed to
by pushing the hose through the opening with a twisting check for leaks. Kit includes individual line testers for -3 through -16. Individual
motion. Finish by removing the assembly and tightening the line testers may also be purchased separately.
fitting. Part No. Hose Size
Part No. Description Individual Line Testers
FRG900510 Koul Tool, Fits -4, -6, -8 FRG900663 -3
FRG900511 Koul Tool, Fits -10, -12, -16 FRG900664 -4
FRG900666 -6
FRG900668 -8
HOSE BARB TO AN ADAPTERS FRG900670 -10
-12
FRG900672
Part No. Description
FRG484104-BL -4AN Male To 1/4" Hose 37° FLARING TOOL FRG900500
FRG484106-BL -6AN Male To 3/8" Hose
FRG484108-BL -8AN Male To 1/2" Hose Economical flaring tool allows forming an AN
specification 37° JIC flare to 3/16" through
5/8" diameter hard line tubing.
338
