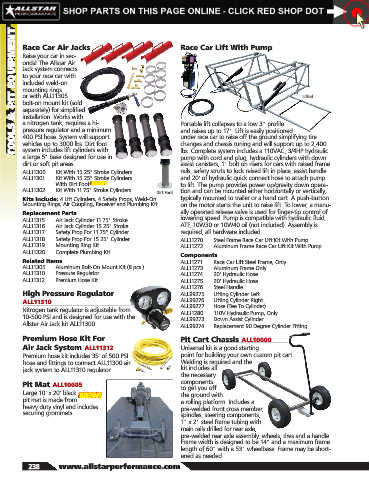

Page 240 - 2020 Allstar Performance Parts and Equipment Catalog

TOOLS & PIT EQUIPMENT

Race Car Air Jacks Race Car Lift With Pump
Raise your car in sec-
onds! The Allstar Air
Jack system connects
to your race car with
included weld-on
mounting rings
or with ALL11305 Lifted
bolt-on mount kit (sold
separately) for simplified
installation. Works with
a nitrogen tank, requires a hi- Portable lift collapses to a low 3" profile
pressure regulator and a minimum and raises up to 17". Lift is easily positioned
400 PSI hose. System will support under race car to raise off the ground simplifying tire
vehicles up to 3000 lbs. Dirt foot changes and chassis tuning and will support up to 2,400
system includes lift cylinders with lbs. Complete system includes a 110VAC, 3/4HP hydraulic
a large 5" base designed for use in pump with cord and plug, hydraulic cylinders with down
dirt or soft pit areas. assist canisters, 1" bolt on risers for cars with raised frame
ALL11300 ..... Kit With 15.25" Stroke Cylinders rails, safety struts to lock raised lift in place, assist handle
ALL11301 ...... Kit With 15.25" Stroke Cylinders and 20' of hydraulic quick connect hose to attach pump
With Dirt Foot NEW! to lift. The pump provides power up/gravity down opera-
ALL11302 ...... Kit With 11.75" Stroke Cylinders
Dirt Foot tion and can be mounted either horizontally or vertically,
Kits Include: 4 Lift Cylinders, 4 Safety Props, Weld-On typically mounted to trailer or a hand cart. A push-button
Mounting Rings, Air Coupling, Receiver and Plumbing Kit on the motor starts the unit to raise lift. To lower, a manu-
Replacement Parts ally operated release valve is used for finger-tip control of
ALL11315 ...... Air Jack Cylinder 11.75" Stroke lowering speed. Pump is compatible with hydraulic fluid,
ALL11316 ...... Air Jack Cylinder 15.25" Stroke ATF, 10W30 or 10W40 oil (not included). Assembly is
ALL11317 ...... Safety Prop For 11.75" Cylinder required, all hardware included.
ALL11318 ...... Safety Prop For 15.25" Cylinder ALL11270 ...... Steel Frame Race Car Lift Kit With Pump
ALL11319 ...... Mounting Ring Kit ALL11272 ...... Aluminum Frame Race Car Lift Kit With Pump
ALL11320 ...... Complete Plumbing Kit
Components
Related Items ALL11271 ...... Race Car Lift Steel Frame, Only
ALL11305 ...... Aluminum Bolt-On Mount Kit (8 pcs.) ALL11273 ...... Aluminum Frame Only
ALL11310 ...... Pressure Regulator ALL11274 ...... 20' Hydraulic Hose
ALL11312 ...... Premium Hose Kit ALL11275 ...... 30' Hydraulic Hose
ALL11276 ...... Steel Handle
High Pressure Regulator ALL99275 ..... Lifting Cylinder Left
ALL11310 ALL99276 ..... Lifting Cylinder Right
ALL99277 ..... Hose (Tee To Cylinder)
Nitrogen tank regulator is adjustable from ALL11280 ...... 110V Hydraulic Pump, Only
10-500 PSI and is designed for use with the ALL99273 ..... Down Assist Cylinder
Allstar Air Jack kit ALL11300. ALL99274 ..... Replacement 90 Degree Cylinder Fitting
Premium Hose Kit For Pit Cart Chassis ALL10600
Air Jack System ALL11312 Universal kit is a good starting
Premium hose kit includes 35' of 500 PSI point for building your own custom pit cart.
hose and fittings to connect ALL11300 air Welding is required and the
jack system to ALL11310 regulator. kit includes all
the necessary
components
Pit Mat ALL10605
to get you off
Large 10' x 20' black NEW! the ground with
pit mat is made from a rolling platform. Includes a
heavy duty vinyl and includes pre-welded front cross member,
securing grommets. spindles, steering components,
1" x 2" steel frame tubing with
main rails drilled for rear axle,
pre-welded rear axle assembly, wheels, tires and a handle.
Frame width is designed to be 14" and a maximum frame
length of 60" with a 53" wheelbase. Frame may be short-
ened as needed.
