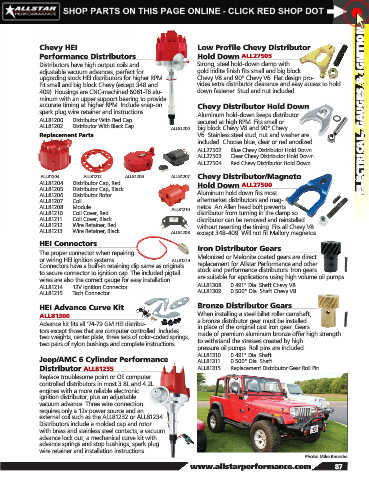

Page 89 - 2020 Allstar Performance Parts and Equipment Catalog

Chevy HEI Low Profile Chevy Distributor
Performance Distributors Hold Down ALL27505
Distributors have high output coils and Strong, steel hold-down clamp with
adjustable vacuum advances, perfect for gold iridite finish fits small and big block
upgrading stock HEI distributors for higher RPM. Chevy V8 and 90° Chevy V6. Flat design pro-
Fit small and big block Chevy (except 348 and vides extra distributor clearance and easy access to hold
409). Housings are CNC-machined 6061-T6 alu- down fastener. Stud and nut included.
minum with an upper support bearing to provide
accurate timing at higher RPM. Include snap-on Chevy Distributor Hold Down
spark plug wire retainer and instructions. ELECTRICAL, GAUGES & IGNITION
Aluminum hold-down keeps distributor
ALL81200 ..... Distributor With Red Cap secured at high RPM. Fits small or
ALL81202 ..... Distributor With Black Cap
ALL81200 big block Chevy V8 and 90° Chevy
Replacement Parts V6. Stainless steel stud, nut and washer are
included. Choose blue, clear or red anodized.
ALL27502 ..... Blue Chevy Distributor Hold Down
ALL27503 ..... Clear Chevy Distributor Hold Down
ALL27504 ..... Red Chevy Distributor Hold Down

ALL81204 ALL81212 ALL81206 ALL81207 Chevy Distributor/Magneto
ALL81204 ..... Distributor Cap, Red Hold Down ALL27500
ALL81205 ..... Distributor Cap, Black
ALL81206 ..... Distributor Rotor Aluminum hold down fits most
ALL81207 ..... Coil aftermarket distributors and mag-
ALL81208 ..... Module ALL81210 netos. An Allen head bolt prevents
ALL81210 ..... Coil Cover, Red distributor from turning in the clamp so
ALL81211 ...... Coil Cover, Black distributor can be removed and reinstalled
ALL81212 ..... Wire Retainer, Red without resetting the timing. Fits all Chevy V8
ALL81213 ..... Wire Retainer, Black ALL81208 except 348-409. Will not fit Mallory magnetos.
HEI Connectors Iron Distributor Gears
The proper connector when repairing
or wiring HEI ignition systems. ALL81214 Melonized or Melonite coated gears are direct
Connectors have a built-in retaining clip same as originals replacement for Allstar Performance and other
to secure connector to ignition cap. The included pigtail stock and performance distributors. Iron gears
wires are also the correct gauge for easy installation. are suitable for applications using high volume oil pumps.
ALL81308 ..... 0.491" Dia. Shaft Chevy V8
ALL81214 ..... 12V Ignition Connector
ALL81215 ..... Tach Connector ALL81309 ..... 0.500" Dia. Shaft Chevy V8
HEI Advance Curve Kit Bronze Distributor Gears
When installing a steel billet roller camshaft,
ALL81300
a bronze distributor gear must be installed
Advance kit fits all ’74-79 GM HEI distribu- in place of the original cast iron gear. Gears
tors except those that are computer controlled. Includes made of premium aluminum bronze offer high strength
two weights, center plate, three sets of color-coded springs, to withstand the stresses created by high
two pairs of nylon bushings and complete instructions.
pressure oil pumps. Roll pins are included.
ALL81310 ..... 0.491" Dia. Shaft
Jeep/AMC 6 Cylinder Performance ALL81311 ...... 0.500" Dia. Shaft
Distributor ALL81255 ALL81315 ..... Replacement Distributor Gear Roll Pin
Replace troublesome point or OE computer
controlled distributors in most 3.8L and 4.2L
engines with a more reliable electronic
ignition distributor, plus an adjustable
vacuum advance. Three wire connection
requires only a 12v power source and an
external coil such as the ALL81232 or ALL81234.
Distributors include a molded cap and rotor
with brass and stainless steel contacts, a vacuum
advance lock out, a mechanical curve kit with
advance springs and stop bushings, spark plug
wire retainer and installation instructions.
Photo: Mike Reusche
