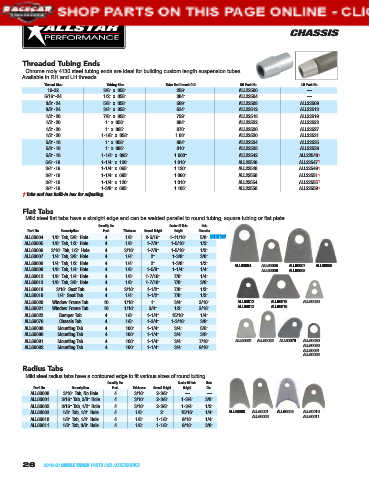

Page 30 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

CHASSIS

Threaded Tubing Ends
Chrome moly 4130 steel tubing ends are ideal for building custom length suspension tubes.
Available in RH and LH threads.
Thread Size Tubing Size Tube End Insert O.D. RH Part No. LH Part No.
10-32 3/8" x .058" .259" ALL22500 —
5/16"-24 1/2" x .058" .384" ALL22504 —
3/8"-24 5/8" x. 058" .509" ALL22508 ALL22509
3/8"-24 3/4" x .058" .634" ALL22512 ALL22513
1/2"-20 7/8" x .058" .759" ALL22518 ALL22519
1/2"-20 1" x .058" .884" ALL22522 ALL22523
1/2"-20 1" x .065" .870" ALL22526 ALL22527
1/2"-20 1-1/8" x .058" 1.00" ALL22530 ALL22531
5/8"-18 1" x .058" .884" ALL22534 ALL22535
5/8"-18 1" x .095" .810" ALL22538 ALL22539
5/8"-18 1-1/4" x .095" 1.060" ALL22542 ALL22543 †
5/8"-18 1-1/4" x .120" 1.010" ALL22546 ALL22547 †
3/4"-16 1-1/4" x .065" 1.120" ALL22548 ALL22549 †
3/4"-16 1-1/4" x .095" 1.060" ALL22550 ALL22551 †
3/4"-16 1-1/4" x .120" 1.010" ALL22554 ALL22555 †
3/4"-16 1-3/8" x .095" 1.185" ALL22558 ALL22559 †
† Tube end has built-in hex for adjusting.

Flat Tabs
0LOG VWHHO ÀDW WDEV KDYH D VWUDLJKW HGJH DQG FDQ EH ZHOGHG SDUDOOHO WR URXQG WXELQJ VTXDUH WXELQJ RU ÀDW SODWH
Quantity Per Center Of Hole Hole
Part No. Description Pack Thickness Overall Height Height Diameter
ALL60004 1/8" Tab, 5/8" Hole 4 1/8" 2-5/16" 1-11/16" 5/8"
ALL60005 1/8" Tab, 1/2" Hole 4 1/8" 1-7/8" 1-5/16" 1/2"
ALL60006 3/16" Tab, 1/2" Hole 4 3/16" 1-7/8" 1-5/16" 1/2"
ALL60007 1/4" Tab, 3/8" Hole 4 1/4" 2" 1-3/8" 3/8"
ALL60008 1/4" Tab, 1/2" Hole 4 1/4" 2" 1-3/8" 1/2" ALL60004 ALL60005 ALL60007 ALL60009
ALL60009 1/8" Tab, 1/4" Hole 4 1/8" 1-5/8" 1-1/4" 1/4" ALL60006 ALL60008
ALL60012 1/8" Tab, 1/4" Hole 4 1/8" 1-7/16" 7/8" 1/4"
ALL60013 1/8" Tab, 3/8" Hole 4 1/8" 1-7/16" 7/8" 3/8"
ALL60018 3/16" Seat Tab 4 3/16" 1-1/2" 7/8" 1/2"
ALL60019 1/4" Seat Tab 4 1/4" 1-1/2" 7/8" 1/2"
ALL60020 Window Frame Tab 10 1/16" 1" 3/4" 3/16" ALL60012 ALL60018 ALL60020
ALL60021 Window Frame Tab 10 1/16" 3/4" 1/2" 3/16" ALL60013 ALL60019
ALL60022 Bumper Tab 4 1/8" 1-1/4" 15/16" 1/4"
ALL60076 Chassis Tab 4 1/8" 1-3/4" 1-3/16" 3/8"
ALL60030 Mounting Tab 4 .100" 1-1/4" 3/4" 5/8"
ALL60090 Mounting Tab 4 .100" 1-1/4" 3/4" 3/8"
ALL60091 Mounting Tab 4 .100" 1-1/4" 3/4" 7/16" ALL60021 ALL60022 ALL60076 ALL60030
ALL60092 Mounting Tab 4 .100" 1-1/4" 3/4" 9/16" ALL60090
ALL60091
ALL60092
Radius Tabs
0LOG VWHHO UDGLXV WDEV KDYH D FRQWRXUHG HGJH WR ¿W YDULRXV VL]HV RI URXQG WXELQJ
Quantity Per Center Of Hole Hole
Part No. Description Pack Thickness Overall Height Height Dia.
ALL60000 3/16" Tab, No Hole 4 3/16" 2-3/8" — —
ALL60001 3/16" Tab, 3/8" Hole 4 3/16" 2-3/8" 1-3/4" 3/8"
ALL60002 3/16" Tab, 1/2" Hole 4 3/16" 2-3/8" 1-3/4" 1/2"
ALL60003 1/8" Tab, 1/4" Hole 4 1/8" 2" 15/16" 1/4" ALL60000 ALL60001 ALL60003 ALL60010
ALL60010 1/8" Tab, 1/4" Hole 4 1/8" 1-1/8" 9/16" 1/4" ALL60002 ALL60011
ALL60011 1/8" Tab, 3/8" Hole 4 1/8" 1-1/8" 9/16" 3/8"
