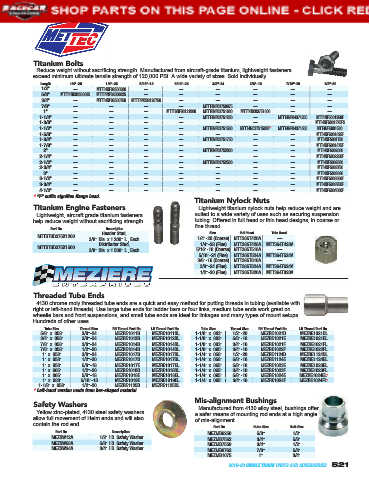

Page 525 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

Titanium Bolts
5HGXFH ZHLJKW ZLWKRXW VDFUL¿FLQJ VWUHQJWK 0DQXIDFWXUHG IURP DLUFUDIW JUDGH WLWDQLXP OLJKWZHLJKW IDVWHQHUV
H[FHHG PLQLPXP XOWLPDWH WHQVLOH VWUHQJWK RI 36, $ ZLGH YDULHW\ RI VL]HV 6ROG LQGLYLGXDOO\
Length 1/4"-20 1/4"-28 5/16"-18 5/16"-24 3/8"-24 3/8"-16 7/16"-20 1/2"-20
1/2" — MTTT4NF02500500 — — — — — —
5/8" MTTT4NC02500625 MTTT4NF02500625 — — — — — —
3/4" — MTTT4NF02500750 MTTT4NC03120750 — — — — —
7/8" — — — — MTTT4NF03750875 — — —
1" — — — MTTT6NF03121000 MTTT6NF03751000 MTTT4NC03751000 — —
1-1/4" — — — — MTTT4NF03751250 — MTTT4NF04371250 MTT4NF5001250F
1-3/8" — — — — — — — MTT4NF5001375FS
1-1/2" — — — — MTTT6NF03751500 MTTT4NC3751500F* MTTT4NF04371500 MTT4NF5001500
1-5/8" — — — — — — — MTT4NF5001625F
1-3/4" — — — — MTTT6NF03751750 — — MTT4NF5001750
1-7/8" — — — — — — — MTT4NF5001875F
2" — — — — MTTT6NF03752000 — — MTT4NF5002000
2-1/4" — — — — — — — MTT4NF5002250F
2-1/2" — — — — MTTT6NF03752500 — — MTT4NF5002500
2-3/4" — — — — — — — MTT4NF5002750
3" — — — — — — — MTT4NF5003000
3-1/2" — — — — — — — MTT4NF5003500F
3-3/4" — — — — — — — MTT4NF5003750F
4-1/2" — — — — — — — MTT4NF5004500F
* “F” suffix signifies flange head.
Titanium Nylock Nuts
Titanium Engine Fasteners /LJKWZHLJKW WLWDQLXP Q\ORFN QXWV KHOS UHGXFH ZHLJKW DQG DUH
/LJKWZHLJKW DLUFUDIW JUDGH WLWDQLXP IDVWHQHUV suited to a wide variety of uses such as securing suspension
KHOS UHGXFH ZHLJKW ZLWKRXW VDFUL¿FLQJ VWUHQJWK tubing. Offered in full head or thin head designs, in coarse or
¿QH WKUHDG
Part No. Description
Header Stud, Size Full Head Thin Head
MTTSTUD375X1200
3/8" Dia. x 1.200" L., Each 1/4"-20 (Coarse) MTT365T420A —
MTTSTUD375X1500 Distributor Stud, 1/4"-28 (Fine) MTT365T428A MTT364T428A
3/8" Dia. x 1.500" L., Each 5/16"-18 (Coarse) MTT365T518A —
5/16"-24 (Fine) MTT365T524A MTT364T524A
3/8"-16 (Coarse) MTT365T616A —
3/8"-24 (Fine) MTT365T624A MTT364T624A
1/2"-20 (Fine) MTT365T820A MTT364T820A

Threaded Tube Ends
4130 chrome moly threaded tube ends are a quick and easy method for putting threads in tubing (available with
right or left-hand threads). Use large tube ends for ladder bars or four links, medium tube ends work great on
wheelie bars and front suspensions, and small tube ends are ideal for linkages and many types of mount setups.
Hundreds of other uses.
Tube Size Thread Size RH Thread Part No. LH Thread Part No. Tube Size Thread Size RH Thread Part No. LH Thread Part No.
5/8" x .058" 3/8"-24 MEZRE1011B MEZRE1011BL 1-1/8" x .083" 1/2"-20 MEZRE1021D MEZRE1021DL
3/4" x .058" 3/8"-24 MEZRE1012B MEZRE1012BL 1-1/8" x .083" 5/8"-18 MEZRE1021E MEZRE1021EL
7/8" x .058" 3/8"-24 MEZRE1014B MEZRE1014BL 1-1/8" x .083" 3/4"-16 MEZRE1021F MEZRE1021FL
7/8" x .058" 1/2"-20 MEZRE1014D MEZRE1014DL 1-1/8" x .095" 3/4"-16 MEZRE1022F MEZRE1022FL
1" x .058" 3/8"-24 MEZRE1017B MEZRE1017BL 1-1/4" x .058" 1/2"-20 MEZRE1124D MEZRE1124DL
1" x .058" 1/2"-20 MEZRE1017D MEZRE1017DL 1-1/4" x .058" 5/8"-18 MEZRE1124E MEZRE1124EL
1" x .058" 5/8"-18 MEZRE1017E MEZRE1017EL 1-1/4" x .065" 5/8"-18 MEZRE1023E MEZRE1023EL
1" x .065" 1/2"-20 MEZRE1018D MEZRE1018DL 1-1/4" x .065" 3/4"-16 MEZRE1023F MEZRE1023FL
1" x .065" 5/8"-18 MEZRE1018E MEZRE1018EL 1-1/4" x .095" 5/8"-18 MEZRE1024E MEZRE1024EL*
1" x .083" 5/18"-18 MEZRE1019E MEZRE1019EL 1-1/4" x .095" 3/4"-16 MEZRE1024F MEZRE1024FL*
1-1/8" x .058" 1/2"-20 MEZRE1125D MEZRE1125DL
* Left-hand version made from hex-shaped material
Mis-alignment Bushings
Safety Washers Manufactured from 4130 alloy steel, bushings offer
Yellow zinc-plated, 4130 steel safety washers a safer means of mounting rod ends at a high angle
allow full movement of Heim ends and will also of mis-alignment.
contain the rod end.
Part No. Heim Size Bolt Size
Part No. Description MEZMB6250 5/8" 1/2"
MEZSW12A 1/2" I.D. Safety Washer MEZMB7562 3/4" 5/8"
MEZSW58A 5/8" I.D. Safety Washer MEZMB7550 3/4" 1/2"
MEZSW34A 3/4" I.D. Safety Washer MEZMB8762 7/8" 5/8"
MEZMB1075 1" 3/4"
2019-20 CIRCLE TRACK PARTS AND ACCESSORIES 521
