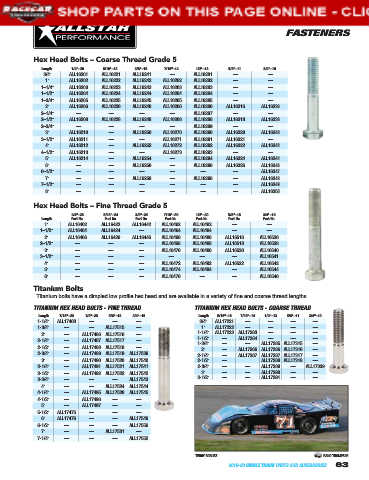

Page 67 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

FASTENERS

Hex Head Bolts – Coarse Thread Grade 5
Length 1/4"–20 5/16"–18 3/8"–16 7/16"–14 1/2"–13 5/8"–11 3/4"–10
3/4" ALL16201 ALL16221 ALL16241 — ALL16281 — —
1" ALL16202 ALL16222 ALL16242 ALL16262 ALL16282 — —
1–1/4" ALL16203 ALL16223 ALL16243 ALL16263 ALL16283 — —
1–1/2" ALL16204 ALL16224 ALL16244 ALL16264 ALL16284 — —
1–3/4" ALL16205 ALL16225 ALL16245 ALL16265 ALL16285 — —
2" ALL16206 ALL16226 ALL16246 ALL16266 ALL16286 ALL16316 ALL16336
2–1/4" — — — — ALL16287 — —
2–1/2" ALL16208 ALL16228 ALL16248 ALL16268 ALL16288 ALL16318 ALL16338
2–3/4" — — — — ALL16289 — —
3" ALL16210 — ALL16250 ALL16270 ALL16290 ALL16320 ALL16340
3–1/2" ALL16211 — — ALL16271 ALL16291 ALL16321 —
4" ALL16212 — ALL16252 ALL16272 ALL16292 ALL16322 ALL16342
4–1/2" ALL16213 — — ALL16273 ALL16293 — —
5" ALL16214 — ALL16254 — ALL16294 ALL16324 ALL16344
6" — — ALL16256 — ALL16296 ALL16326 ALL16346
6–1/2" — — — — — — ALL16347
7" — — ALL16258 — ALL16298 — ALL16348
7–1/2" — — — — — — ALL16349
8" — — — — — — ALL16350

Hex Head Bolts – Fine Thread Grade 5

1/4"–28 5/16"–24 3/8"–24 7/16"–20 1/2"–20 5/8"–18 3/4"–16
Length Part No. Part No. Part No. Part No. Part No. Part No. Part No.
1" ALL16402 ALL16422 ALL16442 ALL16462 ALL16482 — —
1–1/2" ALL16404 ALL16424 — ALL16464 ALL16484 — —
2" ALL16406 ALL16426 ALL16446 ALL16466 ALL16486 ALL16516 ALL16536
2–1/2" — — — ALL16468 ALL16488 ALL16518 ALL16538
3" — — — ALL16470 ALL16490 ALL16520 ALL16540
3–1/2" — — — — — — ALL16541
4" — — — ALL16472 ALL16492 ALL16522 ALL16542
5" — — — ALL16474 ALL16494 — ALL16544
6" — — — ALL16476 — — ALL16546
Titanium Bolts
7LWDQLXP EROWV KDYH D GLPSOHG ORZ SUR¿OH KH[ KHDG DQG DUH DYDLODEOH LQ D YDULHW\ RI ¿QH DQG FRDUVH WKUHDG OHQJWKV
TITANIUM HEX HEAD BOLTS - FINE THREAD TITANIUM HEX HEAD BOLTS - COARSE THREAD
Length 7/16"–20 1/2"–20 5/8"–18 3/4"–16 Length 5/16"–18 7/16"–14 1/2"–13 5/8"–11 3/4"–10
1-1/4" ALL17463 — — — 3/4" ALL17221 — — — —
1-3/4" — — ALL17515 — 1" ALL17222 — — — —
2" — ALL17486 ALL17516 — 1-1/4" ALL17223 ALL17263 — — —
—
—
2-1/4" — ALL17487 ALL17517 — 1-1/2" — ALL17264 ALL17285 ALL17315 —
—
1-3/4"
—
—
2-1/2" — ALL17488 ALL17518 — 2" — ALL17266 ALL17286 ALL17316 —
2-3/4" — ALL17489 ALL17519 ALL17539 2-1/4" — ALL17267 ALL17287 ALL17317 —
3" — ALL17490 ALL17520 ALL17540 2-1/2" — ALL17288 ALL17318 —
3-1/4" — ALL17491 ALL17521 ALL17541 2-3/4" — — ALL17289 — ALL17339
3-1/2" — ALL17492 ALL17522 ALL17542 3" — — ALL17290 — —
3-3/4" — — — ALL17543 3-1/2" — — ALL17291 — —
4" — — ALL17524 ALL17544
4-1/4" — ALL17495 ALL17526 ALL17545
4-1/2" — ALL17496 — —
5" — ALL17497 — —
5-1/2" ALL17475 — — —
6" ALL17476 — — ALL17549
6-1/2" — — — ALL17550
7" — — ALL17531 —
7-1/4" — — — ALL17552
