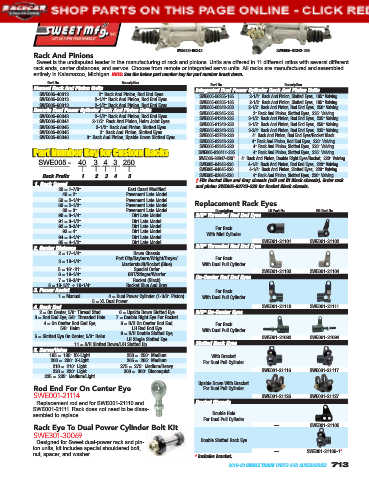

Page 717 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog
P. 717

SWE005-60343                     SWE005-92343-235
            Rack And Pinions
             6ZHHW LV WKH XQGLVSXWHG OHDGHU LQ WKH PDQXIDFWXULQJ RI UDFN DQG SLQLRQV  8QLWV DUH RIIHUHG LQ    GLIIHUHQW UDWLRV ZLWK VHYHUDO GLIIHUHQW
            UDFN HQGV  FHQWHU GLVWDQFHV  DQG VHUYRV  &KRRVH IURP UHPRWH RU LQWHJUDWHG VHUYR XQLWV  $OO UDFNV DUH PDQXIDFWXUHG DQG DVVHPEOHG
            entirely in Kalamazoo, Michigan. NOTE: See the below part number key for part number break down.
                Part No.                 Description
                                                                                              Description
                                                                     Part No.
            Manual Rack And Pinion Units                         Integrated Dual Power Cylinder Rack And Pinion Units
              SWE005-40313       2" Rack And Pinion, Rod End Eyes
              SWE005-50313      2-1/4" Rack And Pinion, Rod End Eyes  SWE005-50355-185  2-1/4" Rack And Pinion, Slotted Eyes, .185" Valving
              SWE005-60313      2-1/2" Rack And Pinion, Rod End Eyes  SWE005-60355-185  2-1/2" Rack And Pinion, Slotted Eyes, .185" Valving
            Remote Dual Power Cylinder Rack And Pinion Units      SWE005-60343-250  2-1/2" Rack And Pinion, Rod End Eyes, .250" Valving
              SWE005-60343      2-1/2" Rack And Pinion, Rod End Eyes  SWE005-80345-235  3" Rack And Pinion, Slotted Eyes, .235" Valving
              SWE005-60344     2-1/2" Rack And Pinion, Heim Joint Eyes  SWE005-91343-235  3-1/2" Rack And Pinion, Rod End Eyes, .235" Valving
              SWE005-60345      2-1/2" Rack And Pinion, Slotted Eyes  SWE005-91343-250  3-1/2" Rack And Pinion, Rod End Eyes, .250" Valving
              SWE005-80345       3" Rack And Pinion, Slotted Eyes  SWE005-92343-235  3-3/4" Rack And Pinion, Rod End Eyes, .235" Valving
              SWE005-80346   3" Rack And Pinion, Upside Down Slotted Eyes  SWE005-93743-220  4" Rack And Pinion, Rod End Eyes/Rocket Black
                                                                  SWE005-93343-220  4" Rack And Pinion, Rod End Eyes, .220" Valving
                                                                  SWE005-93345-220  4" Rack And Pinion, Slotted Eyes, .220" Valving
                                                                  SWE005-936411-235  4" Rack And Pinion, Slotted Eyes, .235" Valving
                                                                  SWE005-93847-220 †  4" Rack And Pinion, Double Right Eyes/Rocket, .220" Valving
            Part Number Key for Custom Racks
              SWE005 -   40  3  4  3  250                         SWE005-94343-220  4-1/4" Rack And Pinion, Rod End Eyes, .220" Valving
                                                                  SWE005-94645-220  4-1/4" Rack And Pinion, Slotted Eyes, .220" Valving
               Rack Prefix  1    2  3  4    5                      SWE005-93645-220  4" Rack And Pinion, Slotted Eyes, .220" Valving
            1. Rack Speed                                       † Fits Rocket Blue and Grey chassis (will not fit Black chassis). Order rack
                    30 = 1-7/8"            East Coast Modified  and pinion SWE005-93743-220 for Rocket Black chassis.
                     40 = 2"              Pavement Late Model
                    50 = 2-1/4"           Pavement Late Model
                    60 = 2-1/2"           Pavement Late Model   Replacement Rack Eyes
                     80 = 3"              Pavement Late Model          Description      LH Part No.     RH Part No.
                    90 = 3-1/4"             Dirt Late Model     5/8" Threaded Rod End Eyes
                    91 = 3-1/2"             Dirt Late Model
                    92 = 3-3/4"             Dirt Late Model            For Rack
                     93 = 4"                Dirt Late Model         With Mini Cylinder
                    94 = 4-1/4"             Dirt Late Model
                    95 = 4-1/2"             Dirt Late Model                           SWE001-21101    SWE001-21102
            2. Center Distance                                  5/8" Threaded Rod End Eyes
                    2 = 17-1/4"             Howe Chassis
                                                                       For Rack
                    3 = 18-1/4"        Port City/Rayburn/Wright/Troyer/  With Dual Pull Cylinder
                                         Mastersbuilt/Rocket (Blue)
                    5 = 16"-21"              Special Order                            SWE001-21103    SWE001-21104
                    6 = 19-1/4"            GRT/Stinger/Warrior  On-Center Rod End Eyes
                    7 = 19-3/4"             Rocket (Black)
                 8 = 18-1/4" + 19-1/4"    Rocket Blue And Grey
            3. Power Assist                                            For Rack
                    1 = Manual      4 = Dual Power Cylinder (1-3/8" Piston)  With Dual Pull Cylinder
                               5 = XL Dual Power
            4. Rack End                                                               SWE001-21110    SWE001-21111
              2 = On Center, 5/8" Thread Stud  6 = Upside Down Slotted Eye  5/8" On-Center Eyes
            3 = Rod End Eye, 5/8" Threaded Hole  7 = Double Right Eye For Rocket
               4 = On Center Rod End Eye,   8 = R/H On Center Rod End,   For Rack
                     5/8" Heim              LH Rod End Eye         With Dual Pull Cylinder
                                        9 = R/H Double Slotted Eye,
            5 = Slotted Eye On Center, 5/8" Heim  LH Single Slotted Eye               SWE001-21093    SWE001-21094
                         11 = R/H Slotted Down/L/H Slotted Up   Slotted Rack Eyes
            5. Servo/Valve
                 185 = .185" XX-Light     250 = .250" Medium          With Bracket
                 200 = .200" X-Light      265 = .265" Medium       For Dual Pull Cylinder
                  210 = .210" Light     275 = .275" Medium/Heavy
                  220 = .220" Light      300 = .300" Bloomquist                       SWE001-21116    SWE001-21117
               235 = .235" Medium/Light
                                                                  Upside Down With Bracket
            Rod End For On Center Eye                              For Dual Pull Cylinder
            SWE001-21114                                                              SWE001-21126    SWE001-21127
             5HSODFHPHQW URG HQG IRU 6:(          DQG           Rocket Chassis
            6:(           5DFN GRHV QRW QHHG WR EH GLVDV-
            sembled to replace.                                       Double Hole
                                                                   For Dual Pull Cylinder
            Rack Eye To Dual Power Cylinder Bolt Kit                                      —           SWE001-21105
            SWE301-30069
             'HVLJQHG IRU 6ZHHW GXDO SRZHU UDFN DQG SLQ-          Double Slotted Rack Eye
            LRQ XQLWV  NLW LQFOXGHV VSHFLDO VKRXOGHUHG EROW                               —          SWE001-21106-1*
            nut, spacer, and washer.                            * Includes bracket.
                                                                           2019-20 CIRCLE TRACK PARTS AND ACCESSORIES  713
