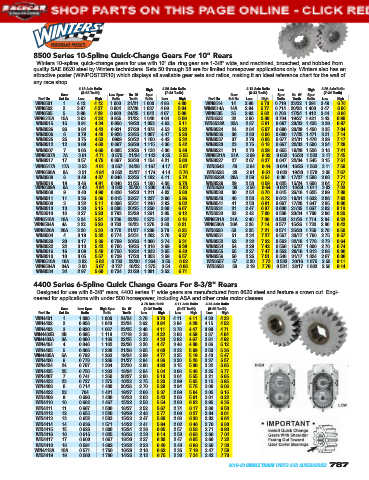

Page 791 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

8500 Series 10-Spline Quick-Change Gears For 10" Rears
:LQWHUV VSOLQH TXLFN FKDQJH JHDUV IRU XVH ZLWK GLD ULQJ JHDU DUH ZLGH DQG PDFKLQHG EURDFKHG DQG KREEHG IURP
TXDOLW\ 6$( VWHHO E\ :LQWHUV WHFKQLFLDQV 6HWV WKURXJK DUH IRU OLPLWHG KRUVHSRZHU DSSOLFDWLRQV RQO\ :LQWHUV DOVR KDV DQ
DWWUDFWLYH SRVWHU :,13267(5 ZKLFK GLVSOD\V DOO DYDLODEOH JHDU VHWV DQG UDWLRV PDNLQJ LW DQ LGHDO UHIHUHQFH FKDUW IRU WKH ZDOO RI
any race shop.
4.12 Axle Ratio High 4.86 Axle Ratio 4.12 Axle Ratio Low High 4.86 Axle Ratio
Gear (8-33 Teeth) Low Spur No. Of Spur (7-34 Teeth) Gear (8-33 Teeth) Spur No. Of Spur (7-34 Teeth)
Part No. Set No. Low High Ratio Teeth Ratio Low High Part No. Set No. Low High Ratio Teeth Ratio Low High
WIN8501 1 4.12 4.12 1.000 21/21 1.000 4.86 4.86 WIN8514 14 2.96 5.73 0.719 23/32 1.391 3.49 6.76
WIN8502 2 3.97 4.27 0.964 27/28 1.037 4.69 5.04 WIN8514A 14A 2.94 5.77 0.714 20/28 1.400 3.47 6.80
WIN8505 5 3.96 4.29 0.960 24/25 1.042 4.67 5.06 WIN8535 35 2.92 5.82 0.708 17/24 1.412 3.44 6.86
WIN8515A 15A 3.93 4.32 0.955 21/22 1.048 4.64 5.09 WIN8532 32 2.90 5.86 0.704 19/27 1.421 3.42 6.90
WIN8515 15 3.91 4.34 0.950 19/20 1.053 4.62 5.11 WIN8532A 32A 2.87 5.91 0.697 23/33 1.435 3.39 6.97
WIN8526 26 3.84 4.43 0.931 27/29 1.074 4.53 5.22 WIN8524 24 2.84 5.97 0.690 20/29 1.450 3.35 7.04
WIN8506 6 3.79 4.48 0.920 23/25 1.087 4.47 5.28 WIN8536 36 2.80 6.06 0.680 17/25 1.471 3.31 7.14
WIN8525 25 3.75 4.53 .0909 20/22 1.100 4.42 5.34 WIN8537 37 2.79 6.08 0.677 21/31 1.476 3.29 7.17
WIN8512 12 3.69 4.60 0.897 26/29 1.115 4.36 5.42 WIN8523 23 2.75 6.18 0.667 22/33 1.500 3.24 7.29
WIN8507 7 3.65 4.66 0.885 23/26 1.130 4.30 5.49 WIN8521 21 2.70 6.29 0.655 19/29 1.526 3.18 7.41
WIN8507A 7A 3.61 4.71 0.875 21/24 1.143 4.25 5.55 WIN8521A 21A 2.69 6.32 0.652 15/23 1.533 3.17 7.45
WIN8517 17 3.57 4.75 0.867 26/30 1.154 4.21 5.60 WIN8527 27 2.67 6.37 0.647 22/34 1.545 3.15 7.51
WIN8517A 17A 3.53 4.81 0.857 24/28 1.167 4.17 5.67 WIN8543 43 2.64 6.44 0.644 16/25 1.563 3.11 7.59
WIN8508A 8A 3.51 4.84 0.852 23/27 1.174 4.14 5.70 WIN8528 28 2.61 6.51 0.633 19/30 1.579 3.08 7.67
WIN8508 8 3.49 4.87 0.846 22/26 1.182 4.11 5.74 WIN8528A 28A 2.59 6.54 6.30 17/27 1.588 3.06 7.71
WIN8519 19 3.46 4.91 0.840 21/25 1.190 4.08 5.78 WIN8529 29 2.58 6.59 0.625 15/24 1.600 3.04 7.77
WIN8509A 9A 3.43 4.94 0.833 25/30 1.200 4.05 5.83 WIN8539 39 2.56 6.64 0.621 18/29 1.611 3.02 7.83
WIN8509 9 3.40 4.99 0.826 19/23 1.211 4.02 5.88 WIN8530 30 2.54 6.70 0.615 26/16 1.625 2.99 7.89
WIN8511 11 3.36 5.06 0.815 22/27 1.227 3.96 5.96 WIN8540 40 2.53 6.72 0.613 19/31 1.632 2.98 7.93
WIN8503 3 3.32 5.11 0.806 25/31 1.240 3.92 6.02 WIN8541 41 2.50 6.81 0.607 17/28 1.647 2.95 8.00
WIN8513 13 3.30 5.15 0.800 20/25 1.250 3.89 6.07 WIN8531 31 2.47 6.87 0.600 21/35 1.667 2.92 8.10
WIN8518 18 3.27 5.20 0.793 23/29 1.261 3.85 6.12 WIN8533 33 2.42 7.00 0.588 20/34 1.700 2.86 8.26
WIN8518A 18A 3.24 5.24 0.786 22/28 1.273 3.82 6.18 WIN8531A 31A 2.40 7.06 0.583 21/36 1.714 2.84 8.33
WIN8504A 4A 3.22 5.26 0.783 18/23 1.278 3.80 6.21 WIN8530A 30A 2.38 7.14 0.577 15/26 1.733 2.80 8.42
WIN8520A 20A 3.20 5.30 0.778 21/27 1.286 3.78 6.25 WIN8550 50 2.35 7.21 0.571 35/20 1.750 2.78 8.50
WIN8504 4 3.19 5.32 0.774 24/31 1.292 3.76 6.27 WIN8551 51 2.34 7.27 0.567 30/17 1.760 2.75 8.57
WIN8520 20 3.17 5.36 0.769 20/26 1.300 3.74 6.31 WIN8552 52 2.32 7.32 0.563 32/18 1.778 2.73 8.64
WIN8522 22 3.13 5.42 0.760 19/25 1.316 3.69 6.39 WIN8554 54 2.29 7.42 0.556 15/27 1.800 2.70 8.74
WIN8516 16 3.09 5.49 0.750 18/24 1.333 3.65 6.48 WIN8555 55 2.27 7.47 0.552 29/16 1.813 2.68 8.80
WIN8510 10 3.05 5.57 0.739 17/23 1.353 3.59 6.57 WIN8556 56 2.26 7.51 0.548 31/17 1.824 2.67 8.86
WIN8510A 10A 3.02 5.62 0.733 22/30 1.364 3.56 6.62 WIN8557 57 2.20 7.73 0.533 30/16 1.875 2.59 9.11
WIN8534A 34A 3.00 5.67 0.727 16/22 1.375 3.54 6.68 WIN8558 58 2.19 7.76 0.531 32/17 1.882 2.58 9.14
WIN8534 34 2.97 5.69 0.724 21/29 1.381 3.52 6.71
4400 Series 6-Spline Quick Change Gears For 8-3/8" Rears
'HVLJQHG IRU XVH ZLWK UHDUV VHULHV ZLGH JHDUV DUH PDQXIDFWXUHG IURP VWHHO DQG IHDWXUH D FURZQ FXW (QJL-
QHHUHG IRU DSSOLFDWLRQV ZLWK XQGHU KRUVHSRZHU LQFOXGLQJ $6$ DQG RWKHU FUDWH PRWRU FODVVHV
3.78 Axle Ratio 4.11 Axle Ratio 4.33 Axle Ratio
Gear Low Spur High Spur No. Of (9-34 Teeth) (9-37 Teeth) (9-39 Teeth)
Part No. Set No. Ratio Ratio Teeth Low High Low High Low High
WIN4401 1 1.000 1.000 24/24 3.78 3.78 4.11 4.11 4.33 4.33
WIN4402 2 0.958 1.043 23/24 3.62 3.94 3.94 4.29 4.15 4.52
WIN4403 3 0.920 1.087 23/25 3.48 4.11 3.78 4.47 3.98 4.71
WIN4403B 3B 0.895 1.118 17/19 3.38 4.22 3.68 4.59 3.87 4.84
WIN4403A 3A 0.880 1.136 22/25 3.33 4.30 3.62 4.67 3.81 4.92
WIN4404 4 0.846 1.182 22/26 3.20 4.47 3.48 4.86 3.66 5.12
WIN4405 5 0.808 1.238 21/26 3.05 4.68 3.32 5.09 3.50 5.36
WIN4405A 5A 0.792 1.263 19/24 2.99 4.77 3.25 5.19 3.43 5.47
WIN4406 6 0.778 1.286 21/27 2.94 4.86 3.20 5.28 3.37 5.57
WIN4424 24 0.767 1.304 23/30 2.90 4.93 3.15 5.36 3.32 5.65
WIN4425 25 0.750 1.333 18/24 2.84 5.04 3.08 5.48 3.25 5.77
WIN4407 7 0.741 1.350 20/27 2.80 5.10 3.04 5.55 3.21 5.85
WIN4423 23 0.727 1.375 16/22 2.75 5.20 2.99 5.65 3.15 5.95
WIN4408 8 0.714 1.400 20/28 2.70 5.29 2.94 5.75 3.09 6.06
WIN4422 22 .704 1.421 19/27 2.66 5.37 2.89 5.84 3.05 6.15
WIN4409 9 0.696 1.438 16/23 2.63 5.43 2.86 5.91 3.01 6.22
WIN4410 10 0.682 1.467 15/22 2.58 5.54 2.80 6.03 2.95 6.35
WIN4411 11 0.667 1.500 18/27 2.52 5.67 2.74 6.17 2.89 6.50
WIN4412 12 0.655 1.526 19/29 2.48 5.77 2.69 6.27 2.84 6.61
WIN4413 13 0.652 1.533 15/23 2.47 5.80 2.68 6.30 2.82 6.64
WIN4414 14 0.636 1.571 14/22 2.41 5.94 2.62 6.46 2.76 6.80
WIN4415 15 0.625 1.600 15/24 2.36 6.05 2.57 6.58 2.71 6.93
WIN4416 16 0.615 1.625 16/26 2.33 6.14 2.53 6.68 2.66 7.04
WIN4417 17 0.600 1.667 18/30 2.27 6.30 2.47 6.85 2.60 7.22
WIN4418 18 0.591 1.692 13/22 2.23 6.40 2.43 6.96 2.56 7.33
WIN4418A 18A 0.571 1.750 16/28 2.16 6.62 2.35 7.19 2.47 7.58
WIN4419 19 0.560 1.786 14/25 2.12 6.75 2.30 7.34 2.42 7.73
