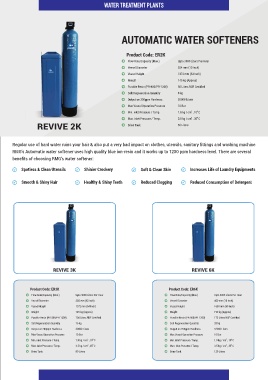

Page 13 - Company Profile.cdr

WATER TREATMENT PLANTS

AUTOMATIC WATER SOFTENERS

RMG
Research • Management • Growth
Product Code: ER2K
Flow Rate/Capacity (Max.) Upto 3000 Liters Per Hour
Vessel Diameter 254 mm (10 Inch)
RMG
Research • Management • Growth
Vessel Height 1372 mm (54 Inch)
Weight 145 kg (Approx)
Purolite Resin (PR-800/PR-1200) 50 Liters NSF Certified
Salt Regeneration Quantity 8 kg
Output on 200ppm Hardness 20000 Liters
Max Vessel Operation Pressure 10 Bar
2
0
Min. inlet Pressure / Temp. 1.8 kg / cm , 10 C
0
2
Max. inlet Pressure / Temp. 3.5 kg / cm , 35 C
REVIVE 2K Brine Tank 50 Liters

Regular use of hard water ruins your hair & also put a very bad impact on clothes, utensils, sanitary fittings and washing machine
RMG’s Automatic water softener uses high quality blue ion-resin and it works up to 1200 ppm hardness level. There are several
benefits of choosing RMG’s water softener:

Spotless & Clean Utensils Shinier Crockery Soft & Clean Skin Increases Life of Laundry Equipments

Smooth & Shiny Hair Healthy & Shiny Teeth Reduced Clogging Reduced Consumption of Detergent

RMG RMG
Research • Management • Growth Research • Management • Growth
RMG RMG
Research • Management • Growth Research • Management • Growth

REVIVE 3K REVIVE 6K

Product Code: ER3K Product Code: ER6K
Flow Rate/Capacity (Max.) Upto 3000 Liters Per Hour Flow Rate/Capacity (Max.) Upto 6000 Liters Per Hour
Vessel Diameter 330 mm (13 Inch) Vessel Diameter 400 mm (16 Inch)
Vessel Height 1372 mm (54 Inch) Vessel Height 1651 mm (65 Inch)
Weight 145 kg (Approx) Weight 190 kg (Approx)
Purolite Resin (PR-800/PR-1200) 100 Liters NSF Certified Purolite Resin (PR-800/PR-1200) 175 Liters NSF Certified
Salt Regeneration Quantity 16 kg Salt Regeneration Quantity 28 kg
Output on 200ppm Hardness 30000 Liters Output on 200ppm Hardness 52000 Liters
Max Vessel Operation Pressure 10 Bar Max Vessel Operation Pressure 10 Bar
Min. inlet Pressure / Temp. 1.8 kg / cm , 10 C Min. inlet Pressure / Temp. 1.8 kg / cm , 10 C
0
2
2
0
0
2
Max. inlet Pressure / Temp. 3.5 kg / cm , 35 C Max. inlet Pressure / Temp. 3.5 kg / cm , 35 C
0
2
Brine Tank 80 Liters Brine Tank 120 Liters
