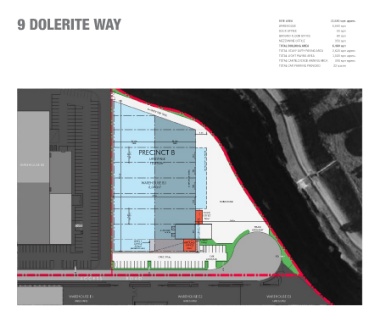

9 DOLERITE WAY SITE AREA 12,530 sqm approx.
WAREHOUSE 6,660 sqm
DOCK OFFICE 50 sqm
GROUND FLOOR OFFICE 80 sqm
MEZZANINE OFFICE 350 sqm
TOTAL BUILDING AREA 6,480 sqm
TOTAL HEAVY DUTY PAVING AREA 2,620 sqm approx.
TOTAL LIGHT PAVING AREA 1,020 sqm approx.
TOTAL CANTILEVERED AWNING AREA 390 sqm approx.
TOTAL CAR PARKING PROVIDED 32 spaces
12,532m² 6m WIDE FIRE TRAIL
6,000m²
430m² 8.1m
50m²
6,480m² 30.15m 30.15m
426m² GRID GRID
2,666m²
32 11.3m PRECINCT B 4 x ON-GRADE DOCKS
32 TYP. GRID RSD RSD RSD
LANDTAKE
WAREHOUSE B2 12,532m² 8m WIDE AWNING ABOVE
111.0m
WAREHOUSE B3
6,000m²
60.6m
RSD HARDSTAND
11.3m RSD DOCK 54.3m
TYP. GRID 3m WIDE AWNING ABOVE OFFICE
50m²
LEVEL 1 2 x RECESSED GROUND 4 x Bicycle TRUCK
OFFICE DOCKS OFFICE Parking EXTRY/EXIT
350m² 80m²
CARS 32No. WAREHOUSE E3
(SHOWN DOTTED)
HARDSTAND
CAR
EXTRY/EXIT
ACCESS ROAD
WAREHOUSE E1 WAREHOUSE E2
HARDSTAND HARDSTAND
