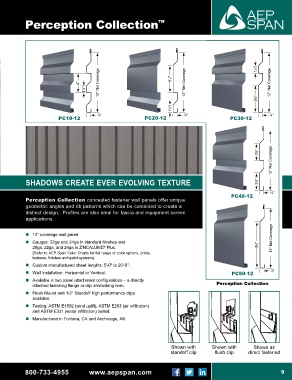

Perception Collection ™

12" Net Coverage 5 1 ⁄2" 12" Net Coverage 1 1 ⁄2" 12" Net Coverage

4"
1 1 ⁄2"
5 1 ⁄2"

1 1 ⁄2"
7 ⁄8" 7 ⁄8" 7 ⁄8"
PC10-12 PC20-12 PC30-12

12" Net Coverage
3 1 ⁄2"

SEAMLESS CLEAN ATTACHMENT AND UNIQUE SHADOW LINES SHADOWS CREATE EVER EVOLVING TEXTURE 3 1 ⁄2"

7 ⁄8"
PC40-12
Perception Collection concealed fastener wall panels offer unique
geometric angles and rib patterns which can be combined to create a
distinct design. Profiles are also ideal for fascia and equipment screen
applications.

n 12" coverage wall panel.
n Gauges: 22ga and 24ga in standard finishes and 12" Net Coverage
20ga, 22ga, and 24ga in ZINCALUME Plus. 9 1 ⁄2"
®
(Refer to AEP Span Color Charts for full range of color options, prints,
textures, finishes and paint systems).
n Custom manufactured sheet lengths: 5'-0" to 20'-0".
7 ⁄8"
n Wall Installation: Horizontal or Vertical. PC50-12
n Available in two panel attachment configurations – a directly
attached fastening flange or clip interlocking hem. Perception Collection
n Flush Mount and 1/2" Standoff high performance clips
available.
n Testing: ASTM E1592 (wind uplift), ASTM E283 (air infiltration)
and ASTM E331 (water infiltration) tested.
n Manufactured in Fontana, CA and Anchorage, AK.

Shown with Shown with Shown as
standoff clip flush clip direct fastened
