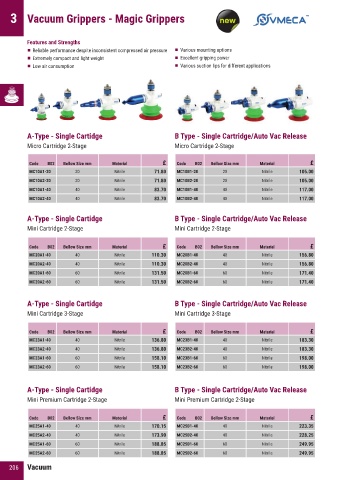

3 Vacuum Grippers - Magic Grippers

Features and Strengths
¬ Reliable performance despite inconsistent compressed air pressure ¬ Various mounting options
¬ Extremely compact and light weight ¬ Excellent gripping power
¬ Low air consumption ¬ Various suction lips for different applications

A-Type - Single Cartidge B Type - Single Cartridge/Auto Vac Release
Micro Cartridge 2-Stage Micro Cartridge 2-Stage

Code B02 Bellow Size mm Material £ Code B02 Bellow Size mm Material £
MC10A1-20 20 Nitrile 71.80 MC10B1-20 20 Nitrile 105.00
MC10A2-20 20 Nitrile 71.80 MC10B2-20 20 Nitrile 105.00
MC10A1-40 40 Nitrile 83.70 MC10B1-40 40 Nitrile 117.00
MC10A2-40 40 Nitrile 83.70 MC10B2-40 40 Nitrile 117.00

A-Type - Single Cartidge B Type - Single Cartridge/Auto Vac Release

Mini Cartridge 2-Stage Mini Cartridge 2-Stage

Code B02 Bellow Size mm Material £ Code B02 Bellow Size mm Material £
MC20A1-40 40 Nitrile 110.30 MC20B1-40 40 Nitrile 156.80
MC20A2-40 40 Nitrile 110.30 MC20B2-40 40 Nitrile 156.80
MC20A1-60 60 Nitrile 131.50 MC20B1-60 60 Nitrile 171.40
MC20A2-60 60 Nitrile 131.50 MC20B2-60 60 Nitrile 171.40

A-Type - Single Cartidge B Type - Single Cartridge/Auto Vac Release
Mini Cartridge 3-Stage Mini Cartridge 3-Stage

Code B02 Bellow Size mm Material £ Code B02 Bellow Size mm Material £
MC23A1-40 40 Nitrile 136.80 MC23B1-40 40 Nitrile 183.30
MC23A2-40 40 Nitrile 136.80 MC23B2-40 40 Nitrile 183.30
MC23A1-60 60 Nitrile 158.10 MC23B1-60 60 Nitrile 198.00
MC23A2-60 60 Nitrile 158.10 MC23B2-60 60 Nitrile 198.00

A-Type - Single Cartidge B Type - Single Cartridge/Auto Vac Release
Mini Premium Cartridge 2-Stage Mini Premium Cartridge 2-Stage

Code B02 Bellow Size mm Material £ Code B02 Bellow Size mm Material £
MC25A1-40 40 Nitrile 170.15 MC25B1-40 40 Nitrile 223.35
MC25A2-40 40 Nitrile 173.90 MC25B2-40 40 Nitrile 228.25
MC25A1-60 60 Nitrile 188.85 MC25B1-60 60 Nitrile 249.95
MC25A2-60 60 Nitrile 188.85 MC25B2-60 60 Nitrile 249.95

206 Vacuum
