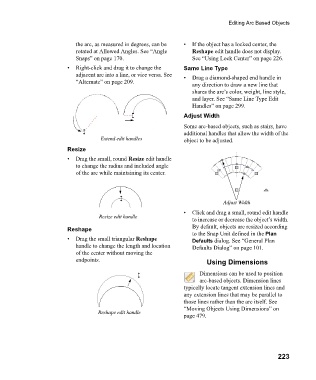

Editing Arc Based Objects



                                  the arc, as measured in degrees, can be   •  If the object has a locked center, the
                                  rotated at Allowed Angles. See “Angle   Reshape edit handle does not display.
                                  Snaps” on page 170.                     See “Using Lock Center” on page 226.
                               •  Right-click and drag it to change the   Same Line Type
                                  adjacent arc into a line, or vice versa. See   •  Drag a diamond-shaped end handle in
                                  “Alternate” on page 209.
                                                                          any direction to draw a new line that
                                                                          shares the arc’s color, weight, line style,
                                                                          and layer. See “Same Line Type Edit
                                                                          Handles” on page 299.
                                                                       Adjust Width
                                                                       Some arc-based objects, such as stairs, have
                                                                       additional handles that allow the width of the
                                           Extend edit handles         object to be adjusted.
                               Resize
                               •  Drag the small, round Resize edit handle
                                  to change the radius and included angle
                                  of the arc while maintaining its center.





                                                                                     Adjust Width
                                                                       •  Click and drag a small, round edit handle
                                          Resize edit handle
                                                                          to increase or decrease the object’s width.
                               Reshape                                    By default, objects are resized according
                                                                          to the Snap Unit defined in the Plan
                               •  Drag the small triangular Reshape       Defaults dialog. See “General Plan
                                  handle to change the length and location   Defaults Dialog” on page 101.
                                  of the center without moving the
                                  endpoints.                                   Using Dimensions

                                                                            Dimensions can be used to position
                                                                            arc-based objects. Dimension lines
                                                                       typically locate tangent extension lines and
                                                                       any extension lines that may be parallel to
                                                                       those lines rather than the arc itself. See
                                                                       “Moving Objects Using Dimensions” on
                                          Reshape edit handle
                                                                       page 479.






                                                                                                       223
