Page 37 - 目錄初稿編排設計
P. 37

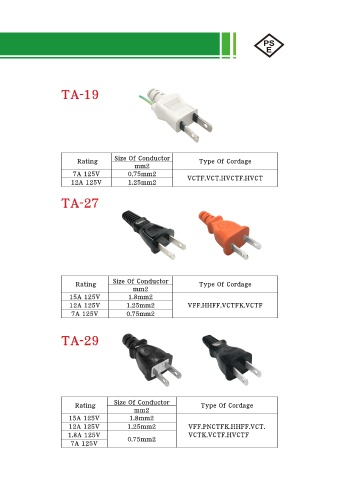

TA-19
Size Of Conductor
Rating Type Of Cordage
mm2
7A 125V 0.75mm2
12A 125V 1.25mm2 VCTF.VCT.HVCTF.HVCT
TA-27
Size Of Conductor
Rating Type Of Cordage
mm2
15A 125V 1.8mm2
12A 125V 1.25mm2 VFF.HHFF.VCTFK.VCTF
7A 125V 0.75mm2
TA-29
Size Of Conductor
Rating Type Of Cordage
mm2
15A 125V 1.8mm2
12A 125V 1.25mm2 VFF.PNCTFK.HHFF.VCT.
1.8A 125V 0.75mm2 VCTK.VCTF.HVCTF
7A 125V
