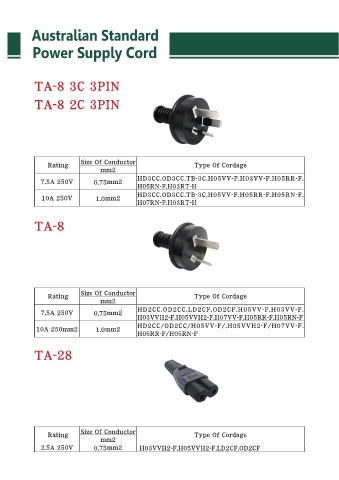

TA-8 3C 3PIN

TA-8 2C 3PIN

Rating Size Of Conductor Type Of Cordage
mm2
HD3CC.OD3CC.TB-3C.H05VV-F.H03VV-F.H05RR-F.
7.5A 250V 0.75mm2
H05RN-F.H03RT-H
HD3CC.OD3CC.TB-3C.H05VV-F.H05RR-F.H05RN-F.
10A 250V 1.0mm2
H07RN-F.H03RT-H

TA-8

Size Of Conductor
Rating Type Of Cordage
mm2
HD2CC.OD2CC.LD2CF.OD2CF.H05VV-F.H03VV-F.
7.5A 250V 0.75mm2
H03VVH2-F.H05VVH2-F.H07VV-F.H05RR-F.H05RN-F
HD2CC/OD2CC/H05VV-F/.H05VVH2-F/H07VV-F.
10A 250mm2 1.0mm2
H05RR-F/H05RN-F

TA-28

Rating Size Of Conductor Type Of Cordage
mm2
2.5A 250V 0.75mm2 H03VVH2-F.H05VVH2-F.LD2CF.OD2CF
