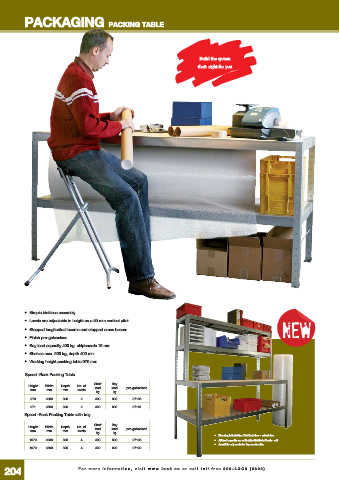

Page 204 - LOC8_catalouge

PACKAGING PaCKInG taBLe

Build the system
that’s right for you

• Simple bloltless assembly
• Levels are adjustable in height on a 50 mm vertical pitch
• Stepped longitudinal beams and stepped cross beams
• Finish pre-galvanised
• Bay load capacity 400 kg. chipboards 19 mm
• Shelves max. 200 kg, depth 400 mm
• Working height packing table 970 mm

Speed -Rack Packing Table
Shelf Bay
Height Width Depth No. of load load pre-galvanised
mm mm mm levels
kg kg
970 2000 800 2 400 800 97106
971 2500 800 2 400 800 97107
Speed -Rack Packing Table with tray

Shelf Bay
Height Width Depth No. of load load pre-galvanised
mm mm mm levels
kg kg
• Planning information: Nominal sizes = actual sizes
1970 2000 800 4 400 800 97108 • All load capacity are uniformly distributed loads - udl.
• Assembly only as starter bay construction
1970 2500 800 4 400 800 97109
204 For more information, visit www.loc8.ae or call toll free 800-LOC8 (5628)
