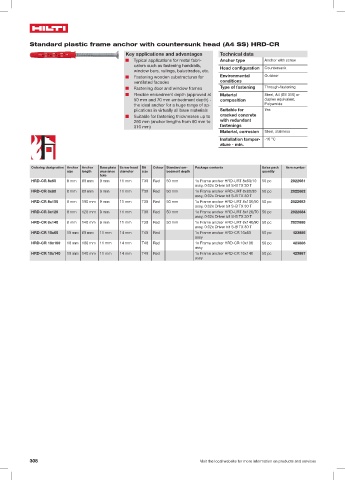

Standard plastic frame anchor with countersunk head (A4 SS) HRD-CR
Key applications and advantages Technical data
■ Typical applications for metal fabri- Anchor type Anchor with screw
cators such as fastening handrails,
Head configuration Countersunk
window bars, railings, balustrades, etc.
■ Fastening wooden substructures for Environmental Outdoor
ventilated facades conditions
■ Fastening door and window frames Type of fastening Through-fastening
■ Flexible embedment depth (approved at Material Steel, A4 (SS 316) or
50 mm and 70 mm embedment depth) - composition duplex equivalent,
the ideal anchor for a huge range of ap- Polyamide
plications in virtually all base materials Suitable for Yes
cracked concrete
■ Suitable for fastening thicknesses up to
260 mm (anchor lengths from 60 mm to with redundant
310 mm) fastenings
Material, corrosion Steel, stainless
Installation temper- -10 °C
ature - min.

Ordering designation Anchor Anchor Base plate Screw head Bit Colour Standard em- Package contents Sales pack Item number
size length clearance diameter size bedment depth quantity
hole
HRD-CR 8x60 8 mm 60 mm 9 mm 11 mm T30 Red 50 mm 1x Frame anchor HRD-URT 8x60/10 50 pc 2022681
assy, 0.02x Driver bit S-B TX 30 T
HRD-CR 8x80 8 mm 80 mm 9 mm 11 mm T30 Red 50 mm 1x Frame anchor HRD-URT 8x80/30 50 pc 2022682
assy, 0.02x Driver bit S-B TX 30 T
HRD-CR 8x100 8 mm 100 mm 9 mm 11 mm T30 Red 50 mm 1x Frame anchor HRD-URT 8x100/50 50 pc 2022683
assy, 0.02x Driver bit S-B TX 30 T
HRD-CR 8x120 8 mm 120 mm 9 mm 11 mm T30 Red 50 mm 1x Frame anchor HRD-URT 8x120/70 50 pc 2022684
assy, 0.02x Driver bit S-B TX 30 T
HRD-CR 8x140 8 mm 140 mm 9 mm 11 mm T30 Red 50 mm 1x Frame anchor HRD-URT 8x140/90 50 pc 2022685
assy, 0.02x Driver bit S-B TX 30 T
HRD-CR 10x60 10 mm 60 mm 11 mm 14 mm T40 Red 1x Frame anchor HRD-CR 10x60 50 pc 423885
assy
HRD-CR 10x100 10 mm 100 mm 11 mm 14 mm T40 Red 1x Frame anchor HRD-CR 10x100 50 pc 423886
assy
HRD-CR 10x140 10 mm 140 mm 11 mm 14 mm T40 Red 1x Frame anchor HRD-CR 10x140 50 pc 423887
assy
