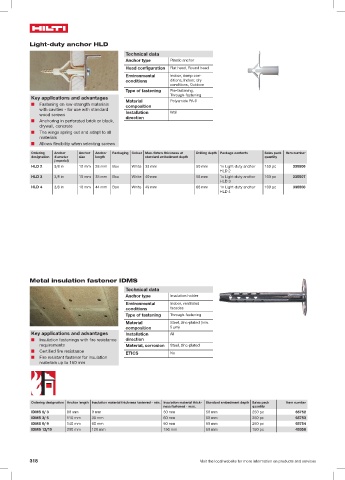

Page 327 - HILTI

Light-duty anchor HLD
Technical data
Anchor type Plastic anchor
Head configuration Flat head, Round head
Environmental Indoor, damp con-
conditions ditions, Indoor, dry
conditions, Outdoor
Type of fastening Pre-fastening,
Through-fastening
Key applications and advantages
Material Polyamide PA 6
■ Fastening on low-strength materials
composition
with cavities - for use with standard Wall
wood screws Installation
direction
■ Anchoring in perforated brick or block,
drywall, concrete
■ The wings spring out and adapt to all
materials
■ Allows flexibility when selecting screws
Ordering Anchor Anchor Anchor Packaging Colour Max. fixture thickness at Drilling depth Package contents Sales pack Item number
designation diameter size length standard embedment depth quantity
(imperial)
HLD 2 3/8 in 10 mm 28 mm Box White 33 mm 50 mm 1x Light-duty anchor 150 pc 335506
HLD 2
HLD 3 3/8 in 10 mm 35 mm Box White 40 mm 56 mm 1x Light-duty anchor 100 pc 335507
HLD 3
HLD 4 3/8 in 10 mm 44 mm Box White 49 mm 66 mm 1x Light-duty anchor 100 pc 335508
HLD 4

Metal insulation fastener IDMS
Technical data
Anchor type Insulation holder
Environmental Indoor, ventilated
conditions facades
Type of fastening Through-fastening
Material Steel, zinc-plated (min.
composition 5 µm)
Key applications and advantages Installation All
■ Insulation fastenings with fire resistance direction
requirements Material, corrosion Steel, zinc-plated
■ Certified fire resistance
ETICS No
■ Fire resistant fastener for insulation
materials up to 150 mm

Ordering designation Anchor length Insulation material thickness fastened - min. Insulation material thick- Standard embedment depth Sales pack Item number
ness fastened - max. quantity
IDMS 0/ 3 80 mm 0 mm 30 mm 50 mm 250 pc 65752
IDMS 3/ 6 110 mm 30 mm 60 mm 50 mm 250 pc 65753
IDMS 6/ 9 140 mm 60 mm 90 mm 50 mm 250 pc 65754
IDMS 12/15 200 mm 120 mm 150 mm 50 mm 150 pc 45358
