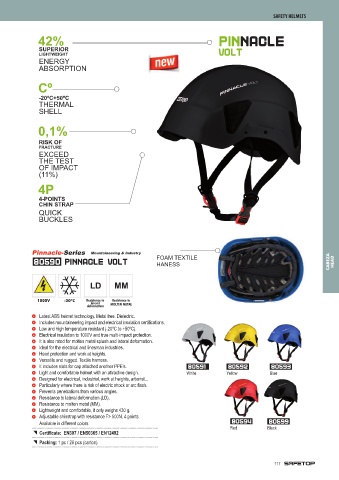

Page 119 - CAT-SAFETOP-2019-ENGLISH

SAFETY HELMETS

42% PINNACLE
SUPERIOR VOLT
LIGHTWEIGHT
ENERGY
ABSORPTION

Cº

-20ºC+50ºC
THERMAL
SHELL

0,1%

RISK OF
FRACTURE
EXCEED
THE TEST
OF IMPACT
(11%)
4P

4-POINTS
CHIN STRAP
QUICK
BUCKLES

Pinnacle-Series Mountaineering & Industry
80590 PINNACLE VOLT FOAM TEXTILE CABEZA HEAD
HANESS

LD MM

1000V -20ºC Resistance to Resistance to
lateral MOLTEN METAL
deformation
+ Latest ABS helmet technology. Metal free. Dielectric.
+ Includes mountaineering impact and electrical insulation certifications.
+ Low and high temperature resistant (-20ºC to +50ºC).
+ Electrical insulation to 1000V and true multi-impact protection.
+ It is also rated for molten metal splash and lateral deformation.
+ Ideal for the electrical and linesman industries.
+ Head protection and work at heights.
+ Versatile and rugged. Textile harness.
+ It includes slots for cap attached another PPE’s. 80591 80592 80593
+ Light and comfortable helmet with an attractive design. White Yellow Blue
+ Designed for electrical, industrial, work at heights, arborist...
+ Particularly where there is risk of electric shock or arc flash.
+ Prevents penetrations from various angles.
+ Resistance to lateral deformation (LD).
+ Resistance to molten metal (MM).
+ Lightweight and comfortable, it only weighs 430 g.
+ Adjustable chinstrap with resistance F> 500N, 4 points.
Available in different colors. 80594 80599
Red Black
Certificate: EN397 / EN50365 / EN12492
Packing: 1 pc / 20 pcs (carton)

117
