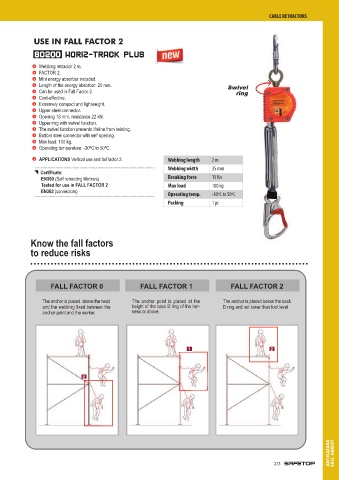

Page 275 - CAT-SAFETOP-2019-ENGLISH

CABLE RETRACTORS

USE IN FALL FACTOR 2

80200 HORIZ-TRACK PLUS

+ Webbing retractor 2 m.
+ FACTOR 2.
+ Mini energy absorber included.
+ Length of the energy absorber: 20 mm. Swivel
+ Can be used in Fall Factor 2. ring
+ Cost-effective.
+ Extremely compact and lightweight.
+ Upper steel connector.
+ Opening 18 mm, resistance 22 kN.
+ Upper ring with swivel function.
+ The swivel function prevents lifeline from twisting.
+ Bottom steel connector with self-opening.
+ Max load: 100 kg.
+ Operating temperature: -30ºC to 50ºC.
+ APPLICATIONS Vertical use and fall factor 2. Webbing length 2 m
Webbing width 35 mm
Certificate:
EN360 (Self retracting lifelines) Breaking force 15 Kn
Tested for use in FALL FACTOR 2 Max load 100 kg
EN362 (connectors)
Operating temp. -30ºC to 50ºC
Packing 1 pc

Know the fall factors
to reduce risks

FALL FACTOR 0 FALL FACTOR 1 FALL FACTOR 2

The anchor is placed above the head The anchor point is placed at the The anchor is placed below the back
and the webbing fixed between the height of the back D ring of the har- D ring and not lower than foot level
anchor point and the worker. ness or above.

1 2

0

ANTICAÍDAS FALL ARREST

273
