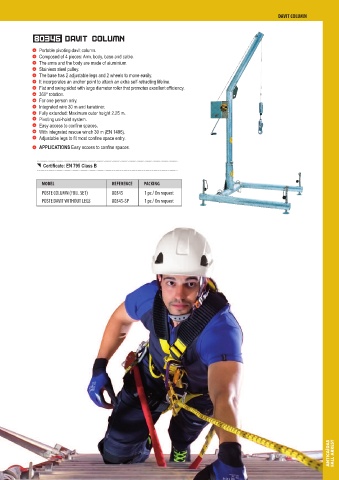

Page 283 - CAT-SAFETOP-2019-ENGLISH

DAVIT COLUMN

80345 DAVIT COLUMN

+ Portable pivoting davit column.
+ Composed of 4 pieces: Arm, body, base and cable.
+ The arms and the body are made of aluminium.
+ Stainless steel pulley.
+ The base has 2 adjustable legs and 2 wheels to move easily.
+ It incorporates an anchor point to attach an extra self-retracting lifeline.
+ Flat and swing sided with large diameter roller that promotes excellent efficiency.
+ 360º rotation.
+ For one person only.
+ Integrated wire 30 m and karabiner.
+ Fully extended: Maximum outer height 2.25 m.
+ Pivoting uni-hoist system.
+ Easy access to confine spaces.
+ With integrated rescue winch 30 m (EN 1496).
+ Adjustable legs to fit most confine space entry.
+ APPLICATIONS Easy access to confine spaces.

Certificate: EN 795 Class B

MODEL REFERENCE PACKING
POSTE COLUMN (FULL SET) 80345 1 pc / On request
POSTE DAVIT WITHOUT LEGS 80345-SP 1 pc / On request

ANTICAÍDAS FALL ARREST
