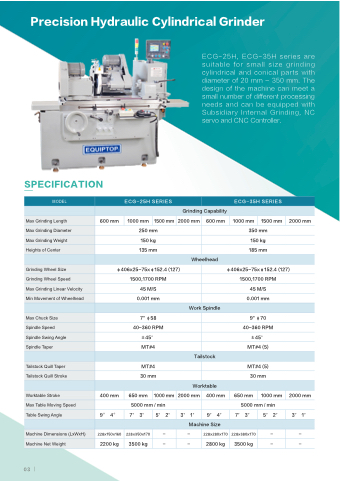

Page 3 - Equiptop ECG Series

Precision Hydraulic Cylindrical Grinder
SPECIFICATION
ECG-25H, ECG-35H series are suitable for small size grinding cylindrical and conical parts with diameter of 20 mm ~ 350 mm. The design of the machine can meet a small number of different processing needs and can be equipped with Subsidiary Internal Grinding, NC servo and CNC Controller.
MODEL ECG-25H SERIES
ECG-35H SERIES
Grinding Capability
Max Grinding Length 600 mm
1000 mm
1500 mm
2000 mm
600 mm
1000 mm
1500 mm
2000 mm
Max Grinding Diameter 250 mm
350 mm
Max Grinding Weight 150 kg
150 kg
Heights of Center 135 mm
185 mm
Wheelhead
Grinding Wheel Size φ406x25~75xφ152.4 (127)
φ406x25~75xφ152.4 (127)
Grinding Wheel Speed 1500,1700 RPM
1500,1700 RPM
Max Grinding Linear Velocity 45 M/S
45 M/S
Min Movement of Wheelhead 0.001 mm
0.001 mm
Work Spindle
Max Chuck Size 7" φ58
9" φ70
Spindle Speed 40~360 RPM
40~360 RPM
Spindle Swing Angle ±45°
±45°
Spindle Taper MT#4
MT#4 (5)
Tailstock
Tailstock Quill Taper MT#4
MT#4 (5)
Tailstock Quill Stroke 30 mm
30 mm
Worktable
Worktable Stroke 400 mm
650 mm
1000 mm
2000 mm
400 mm
650 mm
1000 mm
2000 mm
Max Table Moving Speed 5000 mm / min
5000 mm / min
Table Swing Angle 9° 4°
7° 3°
5° 2°
3° 1°
9° 4°
7° 3°
5° 2°
3° 1°
Machine Size
Machine Dimensions (LxWxH) 228x150x160
228x350x170
-
-
228x280x170
228x380x170
-
-
Machine Net Weight 2200 kg
3500 kg
-
-
2800 kg
3500 kg
-
-
