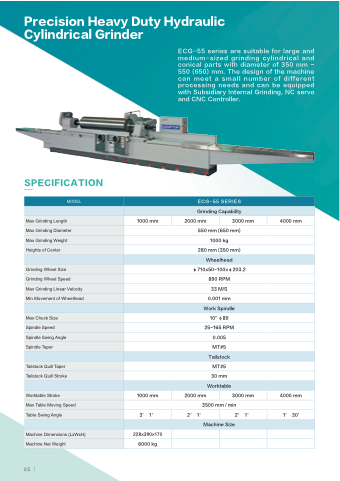

Precision Heavy Duty Hydraulic Cylindrical Grinder
ECG-55 series are suitable for large and medium-sized grinding cylindrical and conical parts with diameter of 350 mm ~ 550 (650) mm. The design of the machine can meet a small number of different processing needs and can be equipped with Subsidiary Internal Grinding, NC servo and CNC Controller.
SPECIFICATION
MODEL
Max Grinding Diameter
Max Grinding Weight
Heights of Center
Grinding Wheel Size
Grinding Wheel Speed
Max Grinding Linear Velocity
Min Movement of Wheelhead
Max Chuck Size
Spindle Speed
Spindle Swing Angle
Spindle Taper
Tailstock Quill Taper
Tailstock Quill Stroke
Max Table Moving Speed
ECG-55 SERIES
Grinding Capability
550 mm (650 mm)
1000 kg
280 mm (350 mm)
Wheelhead
φ710x50~100xφ203.2
890 RPM
33 M/S
0.001 mm
Work Spindle
10" φ89
25~165 RPM
0.005
MT#5
Tailstock
MT#5
30 mm
Worktable
3500 mm / min
Machine Size
4000 mm
Max Grinding Length 1000 mm
2000 mm
3000 mm
Worktable Stroke 1000 mm
2000 mm
3000 mm
4000 mm 1° 30'
Table Swing Angle 3° 1°
2° 1°
2° 1°
Machine Dimensions (LxWxH) 228x390x170
Machine Net Weight 6000 kg
