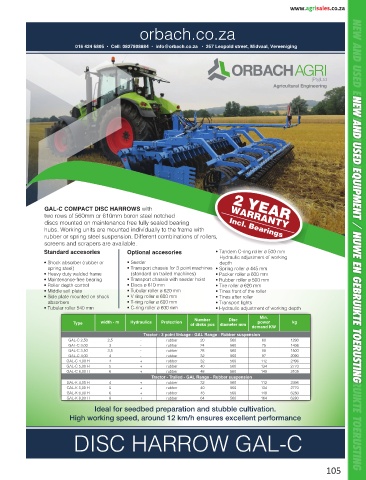

Page 111 - Agrisales Magazine - May 2019 - Wed

www.agrisales.co.za

orbach.co.za

016 424 6805 • Cell: 0827808884 • info@orbach.co.za • 257 Leopold street, Midvaal, Vereeniging NEW AND USED EQUIPMENT / NUWE

GAL-C COMPACT DISC HARROWS with 2 YEAR
two rows of 560mm or 610mm boron steel notched WARRANTY
discs mounted on maintenance free fully sealed bearing
hubs. Working units are mounted individually to the frame with Incl. Bearings
rubber or spring steel suspension. Different combinations of rollers,
screens and scrapers are available. NEW AND USED EQUIPMENT / NUWE EN GEBRUIKTE TOERUSTING
Standard accesories Optional accesories • Tandem C-ring roller ø 500 mm
Hydraulic adjustment of working
• Shock absorber (rubber or • Seeder depth
spring steel) • Transport chassis for 3 point machines • Spring roller ø 445 mm
• Heavy duty welded frame (standard on trailed machines) • Packer roller ø 600 mm
• Maintenance-free bearing • Transport chassis with seeder hoist • Rubber roller ø 500 mm
• Roller depth control • Discs ø 610 mm • Tire roller ø 620 mm
• Middle soil plate • Tubular roller ø 620 mm • Tines front of the roller
• Side plate mounted on shock • V ring roller ø 600 mm • Tines after roller
absorbers • T-ring roller ø 600 mm • Transport lights
• Tubular roller 540 mm • C-ring roller ø 600 mm • Hydraulic adjustment of working depth
Min.
Number Disc
Type width - m Hydraulics Protection of disks pcs diameter mm power kg
demand KW
Tractor - 3 point linkage - GAL Range - Rubber suspension
GAL-C 2,50 2,5 - rubber 20 560 60 1290
GAL-C 3,00 3 - rubber 24 560 75 1436
GAL-C 3,50 3,5 - rubber 28 560 89 1500
GAL-C 4,00 4 - rubber 32 560 97 2090
GAL-C 4,00 H 4 + rubber 32 560 112 2496
GAL-C 5,00 H 5 + rubber 40 560 134 2770
GAL-C 6,00 H 6 + rubber 48 560 149 3105
Tractor - Trailed - GAL Range - Rubber suspension
GAL-K 4,00 H 4 + rubber 32 560 112 2496
GAL-K 5,00 H 5 + rubber 40 560 134 2770
GAL-K 6,00 H 6 + rubber 48 560 149 6280
GAL-K 8,00 H 8 + rubber 64 560 164 6280
Ideal for seedbed preparation and stubble cultivation. E EN GEBRUIKTE TOERUSTING
High working speed, around 12 km/h ensures excellent performance

DISC HARROW GAL-C

105
