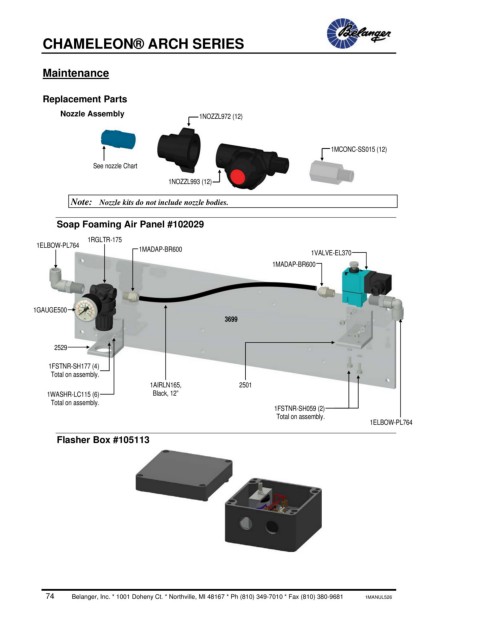

CHAMELEON® ARCH SERIES

Maintenance

Replacement Parts
Nozzle Assembly 1NOZZL972 (12)

1MCONC-SS015 (12)

See nozzle Chart
1NOZZL993 (12)

Note: Nozzle kits do not include nozzle bodies.

Soap Foaming Air Panel #102029
1RGLTR-175
1ELBOW-PL764
1MADAP-BR600 1VALVE-EL370
1MADAP-BR600

1GAUGE500
3699

2529

1FSTNR-SH177 (4)
Total on assembly.

1AIRLN165, 2501

1WASHR-LC115 (6) Black, 12”
Total on assembly. 1FSTNR-SH059 (2)

Total on assembly. 1ELBOW-PL764

Flasher Box #105113

74 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 1MANUL526
