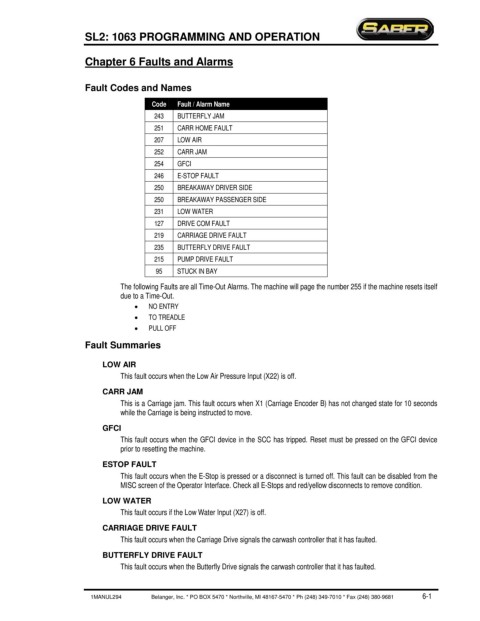

SL2: 1063 PROGRAMMING AND OPERATION

Chapter 6 Faults and Alarms

Fault Codes and Names

Code Fault / Alarm Name
243 BUTTERFLY JAM
251 CARR HOME FAULT
207 LOW AIR
252 CARR JAM
254 GFCI
246 E-STOP FAULT
250 BREAKAWAY DRIVER SIDE
250 BREAKAWAY PASSENGER SIDE
231 LOW WATER
127 DRIVE COM FAULT
219 CARRIAGE DRIVE FAULT
235 BUTTERFLY DRIVE FAULT
215 PUMP DRIVE FAULT
95 STUCK IN BAY

The following Faults are all Time-Out Alarms. The machine will page the number 255 if the machine resets itself
due to a Time-Out.
• NO ENTRY
• TO TREADLE
• PULL OFF
Fault Summaries

LOW AIR
This fault occurs when the Low Air Pressure Input (X22) is off.

CARR JAM
This is a Carriage jam. This fault occurs when X1 (Carriage Encoder B) has not changed state for 10 seconds
while the Carriage is being instructed to move.
GFCI
This fault occurs when the GFCI device in the SCC has tripped. Reset must be pressed on the GFCI device
prior to resetting the machine.
ESTOP FAULT
This fault occurs when the E-Stop is pressed or a disconnect is turned off. This fault can be disabled from the
MISC screen of the Operator Interface. Check all E-Stops and red/yellow disconnects to remove condition.

LOW WATER
This fault occurs if the Low Water Input (X27) is off.
CARRIAGE DRIVE FAULT
This fault occurs when the Carriage Drive signals the carwash controller that it has faulted.

BUTTERFLY DRIVE FAULT
This fault occurs when the Butterfly Drive signals the carwash controller that it has faulted.
