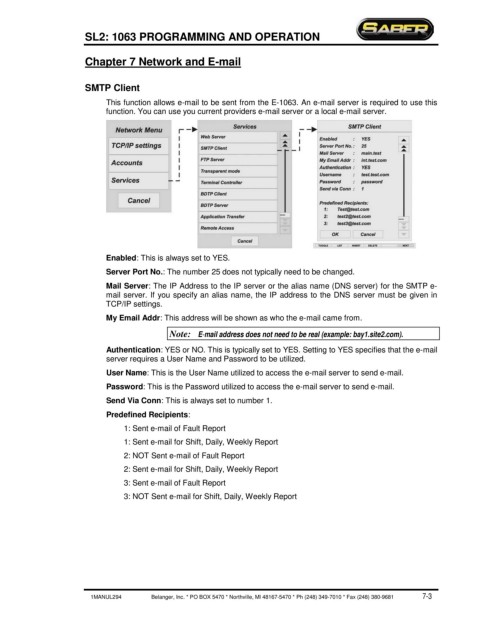

SL2: 1063 PROGRAMMING AND OPERATION

Chapter 7 Network and E-mail

SMTP Client

This function allows e-mail to be sent from the E-1063. An e-mail server is required to use this
function. You can use you current providers e-mail server or a local e-mail server.

Enabled: This is always set to YES.
Server Port No.: The number 25 does not typically need to be changed.

Mail Server: The IP Address to the IP server or the alias name (DNS server) for the SMTP e-
mail server. If you specify an alias name, the IP address to the DNS server must be given in
TCP/IP settings.
My Email Addr: This address will be shown as who the e-mail came from.
Note: E-mail address does not need to be real (example: bay1.site2.com).

Authentication: YES or NO. This is typically set to YES. Setting to YES specifies that the e-mail
server requires a User Name and Password to be utilized.

User Name: This is the User Name utilized to access the e-mail server to send e-mail.
Password: This is the Password utilized to access the e-mail server to send e-mail.
Send Via Conn: This is always set to number 1.
Predefined Recipients:

1: Sent e-mail of Fault Report
1: Sent e-mail for Shift, Daily, Weekly Report
2: NOT Sent e-mail of Fault Report
2: Sent e-mail for Shift, Daily, Weekly Report
3: Sent e-mail of Fault Report
3: NOT Sent e-mail for Shift, Daily, Weekly Report
