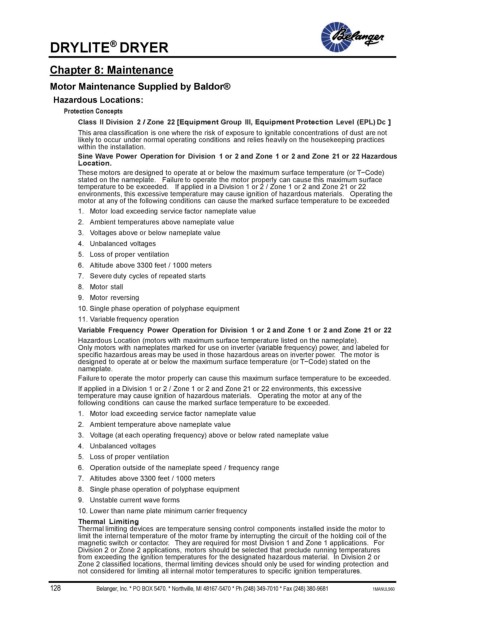

DRYLITE DRYER

Chapter 8: Maintenance

Motor Maintenance Supplied by Baldor®
Hazardous Locations:
Protection Concepts
Class II Division 2 / Zone 22 [Equipment Group III, Equipment Protection Level (EPL) Dc ]
This area classification is one where the risk of exposure to ignitable concentrations of dust are not
likely to occur under normal operating conditions and relies heavily on the housekeeping practices
within the installation.
Sine Wave Power Operation for Division 1 or 2 and Zone 1 or 2 and Zone 21 or 22 Hazardous
Location.
These motors are designed to operate at or below the maximum surface temperature (or T−Code)
stated on the nameplate. Failure to operate the motor properly can cause this maximum surface
temperature to be exceeded. If applied in a Division 1 or 2 / Zone 1 or 2 and Zone 21 or 22
environments, this excessive temperature may cause ignition of hazardous materials. Operating the
motor at any of the following conditions can cause the marked surface temperature to be exceeded
1. Motor load exceeding service factor nameplate value
2. Ambient temperatures above nameplate value
3. Voltages above or below nameplate value
4. Unbalanced voltages
5. Loss of proper ventilation
6. Altitude above 3300 feet / 1000 meters
7. Severe duty cycles of repeated starts
8. Motor stall
9. Motor reversing
10. Single phase operation of polyphase equipment
11. Variable frequency operation
Variable Frequency Power Operation for Division 1 or 2 and Zone 1 or 2 and Zone 21 or 22
Hazardous Location (motors with maximum surface temperature listed on the nameplate).
Only motors with nameplates marked for use on inverter (variable frequency) power, and labeled for
specific hazardous areas may be used in those hazardous areas on inverter power. The motor is
designed to operate at or below the maximum surface temperature (or T−Code) stated on the
nameplate.
Failure to operate the motor properly can cause this maximum surface temperature to be exceeded.
If applied in a Division 1 or 2 / Zone 1 or 2 and Zone 21 or 22 environments, this excessive
temperature may cause ignition of hazardous materials. Operating the motor at any of the
following conditions can cause the marked surface temperature to be exceeded.
1. Motor load exceeding service factor nameplate value
2. Ambient temperature above nameplate value
3. Voltage (at each operating frequency) above or below rated nameplate value
4. Unbalanced voltages
5. Loss of proper ventilation
6. Operation outside of the nameplate speed / frequency range
7. Altitudes above 3300 feet / 1000 meters
8. Single phase operation of polyphase equipment
9. Unstable current wave forms
10. Lower than name plate minimum carrier frequency
Thermal Limiting
Thermal limiting devices are temperature sensing control components installed inside the motor to
limit the internal temperature of the motor frame by interrupting the circuit of the holding coil of the
magnetic switch or contactor. They are required for most Division 1 and Zone 1 applications. For
Division 2 or Zone 2 applications, motors should be selected that preclude running temperatures
from exceeding the ignition temperatures for the designated hazardous material. In Division 2 or
Zone 2 classified locations, thermal limiting devices should only be used for winding protection and
not considered for limiting all internal motor temperatures to specific ignition temperatures.
