Page 51 - Full Side Washer
P. 51

FULL SIDE WASHER


                       Maintenance


                       Exploded Parts View

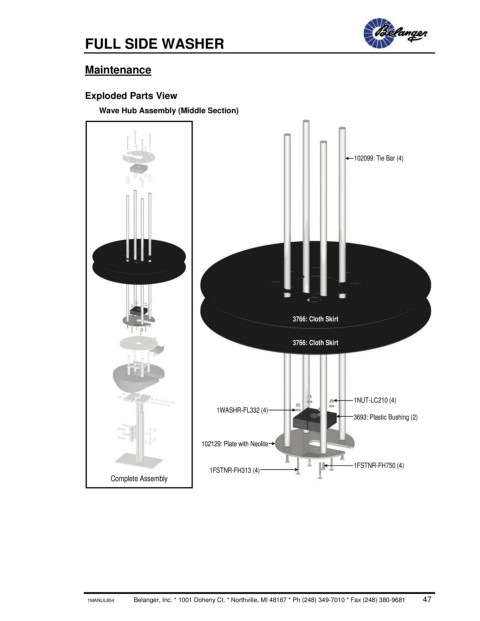

                          Wave Hub Assembly (Middle Section)




                                                                                           102099: Tie Bar (4)
























                                                                            3766: Cloth Skirt


                                                                            3766: Cloth Skirt







                                                                                           1NUT-LC210 (4)
                                                        1WASHR-FL332 (4)
                                                                                           3693: Plastic Bushing (2)


                                                    102129: Plate with Neolite


                                                                                           1FSTNR-FH750 (4)
                                                      1FSTNR-FH313 (4)
                             Complete Assembly
