AIRBLADE® DRYER Signature ® Series

Maintenance

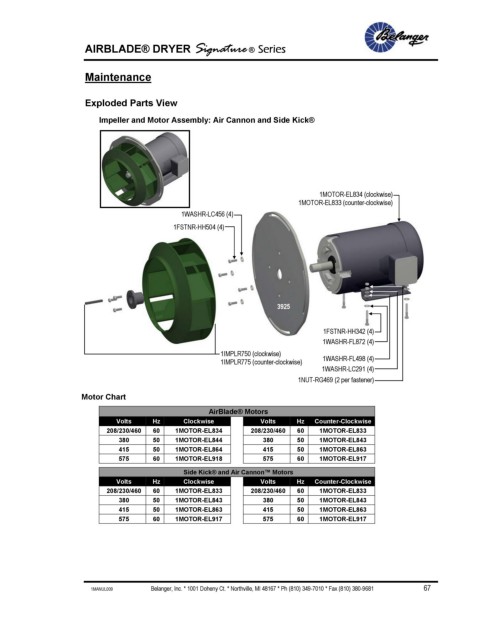

Exploded Parts View
Impeller and Motor Assembly: Air Cannon and Side Kick®

1MOTOR-EL834 (clockwise)
1MOTOR-EL833 (counter-clockwise)
1WASHR-LC456 (4)
1FSTNR-HH504 (4)

3925

1FSTNR-HH342 (4)
1WASHR-FL872 (4)

1IMPLR750 (clockwise)
1IMPLR775 (counter-clockwise) 1WASHR-FL498 (4)
1WASHR-LC291 (4)
1NUT-RG469 (2 per fastener)

Motor Chart
AirBlade® Motors
Volts Hz Clockwise Volts Hz Counter-Clockwise
208/230/460 60 1MOTOR-EL834 208/230/460 60 1MOTOR-EL833
380 50 1MOTOR-EL844 380 50 1MOTOR-EL843
415 50 1MOTOR-EL864 415 50 1MOTOR-EL863
575 60 1MOTOR-EL918 575 60 1MOTOR-EL917

Side Kick® and Air Cannon™ Motors
Volts Hz Clockwise Volts Hz Counter-Clockwise
208/230/460 60 1MOTOR-EL833 208/230/460 60 1MOTOR-EL833
380 50 1MOTOR-EL843 380 50 1MOTOR-EL843
415 50 1MOTOR-EL863 415 50 1MOTOR-EL863
575 60 1MOTOR-EL917 575 60 1MOTOR-EL917
