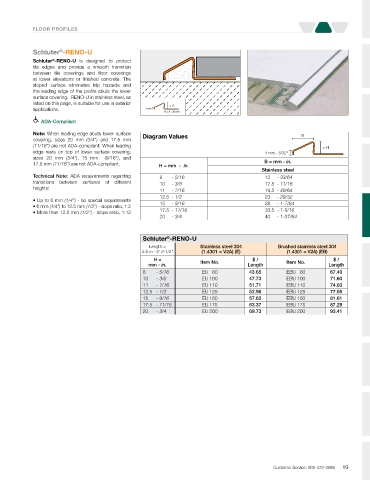

Page 19 - Schluter-FINAL ExteriorSystems-PriceList-2019-USA_Neat

FLOOR PROFILES

Schluter -RENO-U
®
Schluter -RENO-U is designed to protect
®
tile edges and provide a smooth transition
between tile coverings and floor coverings
at lower elevations or finished concrete. The
sloped surface eliminates trip hazards and
the leading edge of the profile abuts the lower
surface covering. RENO-U in stainless steel, as
listed on this page, is suitable for use in exterior = H
applications. 4 mm
H = 8 - 20 mm
ADA-Compliant

Note: When leading edge abuts lower surface Diagram Values B
covering, sizes 20 mm (3/4") and 17.5 mm
(11/16") are not ADA-compliant. When leading = H
edge rests on top of lower surface covering, 4 mm - 5/32"
sizes 20 mm (3/4"), 15 mm (9/16"), and
17.5 mm (11/16") are not ADA-compliant. H = mm - in. B = mm - in.
Stainless steel
Technical Note: ADA requirements regarding 8 - 5/16 13 - 33/64
transitions between surfaces of different 10 - 3/8 17.5 - 11/16
heights: 11 - 7/16 19.5 - 49/64
12.5 - 1/2 23 - 29/32
• Up to 6 mm (1/4") - no special requirements
• 6 mm (1/4") to 12.5 mm (1/2") - slope ratio, 1:2 15 - 9/16 28 - 1-7/64
• More than 12.5 mm (1/2") - slope ratio, 1:12 17.5 - 11/16 33.5 - 1-5/16
20 - 3/4 40 - 1-37/64

Schluter -RENO-U
®
Length = Stainless steel 304 Brushed stainless steel 304
2.5 m - 8' 2-1/2" (1.4301 = V2A) (E) (1.4301 = V2A) (EB)
H = $ / $ /
mm - in. Item No. Length Item No. Length
8 - 5/16 EU 80 43.65 EBU 80 67.40
10 - 3/8 EU 100 47.73 EBU 100 71.60
11 - 7/16 EU 110 51.71 EBU 110 74.03
12.5 - 1/2 EU 125 52.96 EBU 125 77.05
15 - 9/16 EU 150 57.62 EBU 150 81.61
17.5 - 11/16 EU 175 63.37 EBU 175 87.29
20 - 3/4 EU 200 69.73 EBU 200 93.41

Customer Service: 800-472-4588 19
