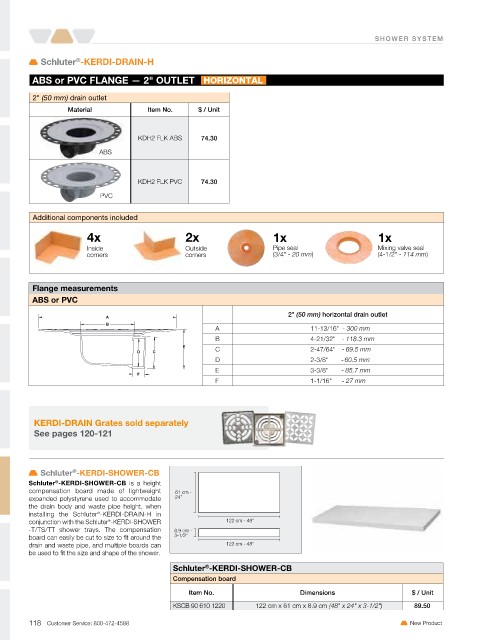

Page 120 - schluter 2019 Price List DJC final(1)_Neat

SHOWER S Y S TEM

®
Schluter -KERDI-DRAIN-H
ABS or PVC FLANGE — 2" OUTLET HORIZONTAL

2" (50 mm) drain outlet
Material Item No. $ / Unit

KDH2 FLK ABS 74.30
ABS

KDH2 FLK PVC 74.30
PVC

Additional components included

4x 2x 1x 1x
B B Inside Outside Pipe seal Mixing valve seal
corners corners (3/4" - 20 mm) (4-1/2" - 114 mm)

Flange measurements
ABS or PVC
2" (50 mm) horizontal drain outlet
A
B
A 11-13/16" - 300 mm
B 4-21/32" - 118.3 mm
E
D C C 2-47/64" - 69.5 mm
D 2-3/8" - 60.5 mm
E 3-3/8" - 85.7 mm
F
F 1-1/16" - 27 mm

KERDI-DRAIN Grates sold separately
See pages 120-121

®
Schluter -KERDI-SHOWER-CB
®
Schluter -KERDI-SHOWER-CB is a height
compensation board made of lightweight 61 cm -
expanded polystyrene used to accommodate 24"
the drain body and waste pipe height, when
®
installing the Schluter -KERDI-DRAIN-H in
conjunction with the Schluter -KERDI-SHOWER 122 cm - 48"
®
-T/TS/TT shower trays. The compensation 8.9 cm -
board can easily be cut to size to fit around the 3-1/2"
drain and waste pipe, and multiple boards can 122 cm - 48"
be used to fit the size and shape of the shower.
®
Schluter -KERDI-SHOWER-CB
Compensation board
Item No. Dimensions $ / Unit
KSCB 90 610 1220 122 cm x 61 cm x 8.9 cm (48" x 24" x 3-1/2") 89.50

118 Customer Service: 800-472-4588 New Product
