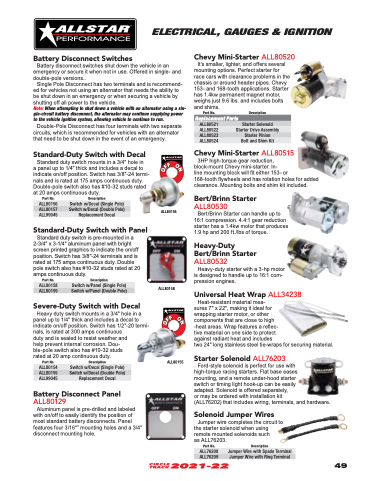

Page 51 - 2021-22 Auto Performance_Circle Track

Battery Disconnect Switches
Battery disconnect switches shut down the vehicle in an emergency or secure it when not in use. Offered in single- and double-pole versions..
Single Pole Disconnect has two terminals and is recommend- ed for vehicles not using an alternator that needs the ability to be shut down in an emergency or when securing a vehicle by shutting off all power to the vehicle.
Note: When attempting to shut down a vehicle with an alternator using a sin- gle-circuit battery disconnect, the alternator may continue supplying power to the vehicle ignition system, allowing vehicle to continue to run.
Double-Pole Disconnect has four terminals with two separate circuits, which is recommended for vehicles with an alternator that need to be shut down in the event of an emergency.
Chevy Mini-Starter ALL80520 It’s smaller, lighter, and offers several
mounting options. Perfect starter for race cars with clearance problems in the chassis or around header pipes. Chevy 153- and 168-tooth applications. Starter has 1.4kw permanent magnet motor, weighs just 9.6 lbs. and includes bolts and shims.
ELECTRICAL, GAUGES & IGNITION
Part No.
Description
Replacement Parts
ALL80521
Starter Solenoid
ALL80522
Starter Drive Assembly
ALL80523
Starter Pinion
ALL80524
Bolt and Shim Kit
Standard-Duty Switch with Decal
Standard duty switch mounts in a 3/4" hole in
a panel up to 1/4" thick and includes a decal to indicate on/off position. Switch has 3/8"-24 termi- nals and is rated at 175 amps continuous duty. Double-pole switch also has #10-32 studs rated at 20 amps continuous duty.
Chevy Mini-Starter ALL80515 3HP high-torque gear reduction,
block-mount Chevy mini-starter. In-

clearance. Mounting bolts and shim kit included.
Bert/Brinn Starter
ALL80530
Bert/Brinn Starter can handle up to 16:1 compression. 4.4:1 gear reduction starter has a 1.4kw motor that produces 1.9 hp and 200 ft./lbs of torque.
Heavy-Duty Bert/Brinn Starter ALL80532
Heavy-duty starter with a 3-hp motor is designed to handle up to 16:1 com- pression engines.
Universal Heat Wrap ALL34238 Heat-resistant material mea-
sures 7" x 22", making it ideal for
wrapping starter motor, or other
components that are close to high
-
tive material on one side to protect
against radiant heat and includes
two 24" long stainless steel tie-wraps for securing material.
Starter Solenoid ALL76203 Ford-style solenoid is perfect for use with
high-torque racing starters. Flat base eases mounting, and a remote under-hood starter switch or timing light hook-up can be easily adapted. Solenoid is offered separately,
or may be ordered with installation kit
(ALL76202) that includes wiring, terminals, and hardware.
Solenoid Jumper Wires
Jumper wire completes the circuit to the starter solenoid when using remote mounted solenoids such
as ALL76203.
Part No. Description
Part No.
Description
ALL80156
Switch w/Decal (Single Pole)
ALL80157
Switch w/Decal (Double Pole)
ALL99045
Replacement Decal
Standard-Duty Switch with Panel
Standard duty switch is pre-mounted in a 2-3/4" x 3-1/4" aluminum panel with bright screen printed graphics to indicate the on/off position. Switch has 3/8"-24 terminals and is rated at 175 amps continuous duty. Double pole switch also has #10-32 studs rated at 20 amps continuous duty.
ALL80156
Part No.
Description
ALL80158
Switch w/Panel (Single Pole)
ALL80159
Switch w/Panel (Double Pole)
Severe-Duty Switch with Decal
Heavy duty switch mounts in a 3/4" hole in a panel up to 1/4" thick and includes a decal to indicate on/off position. Switch has 1/2"-20 termi- nals, is rated at 300 amps continuous
duty and is sealed to resist weather and help prevent internal corrosion. Dou- ble-pole switch also has #10-32 studs rated at 20 amp continuous duty.
ALL80158
ALL80155
Part No.
Description
ALL80154
Switch w/Decal (Single Pole)
ALL80155
Switch w/Decal (Double Pole)
ALL99045
Replacement Decal
Battery Disconnect Panel
ALL80129
Aluminum panel is pre-drilled and labeled with on/off to easily identify the position of most standard battery disconnects. Panel features four 3/16"” mounting holes and a 3/4" disconnect mounting hole.
ALL76208
Jumper Wire with Spade Terminal
ALL76209
Jumper Wire with Ring Terminal
