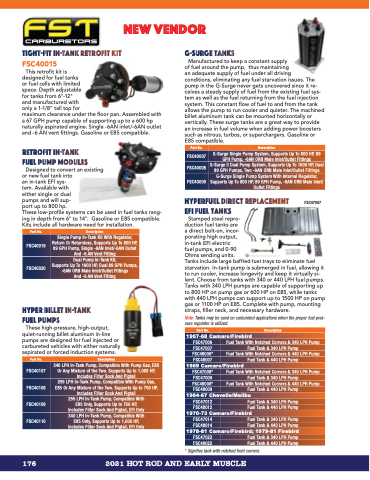

Page 178 - 2021-22 Auto Performance_Hot Rod and Early Muscle
P. 178
Tight-Fit In-Tank RetroFit Kit
FSC40015
designed for fuel tanks
or fuel cells with limited
space. Depth adjustable
for tanks from 6"-12"
and manufactured with
only a 1-1/8” tall top for
a 67 GPH pump capable of supporting up to a 600 hp naturally aspirated engine. Single -6AN inlet/-6AN outlet
RetroFit In-Tank Fuel Pump Modules
Designed to convert an existing or new fuel tank into
an in-tank EFI sys-
tem. Available with
either single or dual
pumps and will sup-
port up to 800 hp.
- ing in depth from 6" to 14". Gasoline or E85 compatible. Kits include all hardware need for installation.
G-Surge Tanks
Manufactured to keep a constant supply
of fuel around the pump, thus maintaining
an adequate supply of fuel under all driving
conditions, eliminating any fuel starvation issues. The pump in the G-Surge never gets uncovered since it re- ceives a steady supply of fuel from the existing fuel sys- tem as well as the fuel returning from the fuel injection allows the pump to run cooler and quieter. The machined billet aluminum tank can be mounted horizontally or vertically. These surge tanks are a great way to provide an increase in fuel volume when adding power boosters such as nitrous, turbos, or superchargers. Gasoline or E85 compatible.
NEW VENDOR
Part No.
FSC40007
FSC40008
Description
G-Surge Single Pump System, Supports Up To 800 HP, 89 GPH Pump, -6AN ORB Male Inlet/Outlet Fittings
G-Surge II Dual Pump System, Supports Up To 1600 HP, Dual 89 GPH Pumps, Two -6AN ORB Male Inlet/Outlet Fittings
FSC40009
G-Surge Single Pump System With Internal Regulator, Supports Up To 800 HP, 89 GPH Pump, -6AN ORB Male Inlet/ Outlet Fittings
Hyperfuel Direct Replacement
EFI Fuel Tanks Stamped steel repro-
FSC47007
Part No.
Description
duction fuel tanks are
a direct bolt-on, incor-
porating high output,
in-tank EFI electric
fuel pumps, and 0-90
Ohms sending units.
starvation. In-tank pump is submerged in fuel, allowing it to run cooler, increase longevity and keep it virtually si- lent. Choose from tanks with 340 or 440 LPH fuel pumps. Tanks with 340 LPH pumps are capable of supporting up to 800 HP on pump gas or 600 HP on E85, while tanks with 440 LPH pumps can support up to 1500 HP on pump gas or 1100 HP on E85. Complete with pump, mounting
Note: Tanks may be used on carbureted applications when the proper fuel pres- sure regulator is utilized.
FSC40019
Single Pump In-Tank Kit With Regulator, Return Or Returnless, Supports Up To 800 HP, 89 GPH Pump, Single -6AN Inlet/-6AN Outlet And -6 AN Vent Fitting
FSC40020
Dual Pump In-Tank Kit,
Supports Up To 1600 HP, Dual 89 GPH Pumps, -6AN ORB Male Inlet/Outlet Fittings
And -6 AN Vent Fitting
Hyper Billet In-Tank
Fuel Pumps
These high-pressure, high-output,
quiet-running billet aluminum in-line pumps are designed for fuel injected or carbureted vehicles with either naturally aspirated or forced induction systems.
Part No.
Description
FSC47006
FSC47007
FSC48006*
FSC48007
Part No.
Description
Fuel Tank With Notched Corners & 340 LPH Pump
Fuel Tank & 340 LPH Pump
Fuel Tank With Notched Corners & 440 LPH Pump
Fuel Tank & 440 LPH Pump
FSC40107
340 LPH In-Tank Pump, Compatible With Pump Gas, E85 Or Any Mixture of the Two. Supports Up to 1,000 HP, Includes Filter Sock And Pigtail
FSC40108
255 LPH In-Tank Pump, Compatible With Pump Gas, E85 Or Any Mixture of the Two. Supports Up to 750 HP, Includes Filter Sock And Pigtail
FSC40109
255 LPH In-Tank Pump, Compatible With E85 Only, Supports Up to 750 HP, Includes Filter Sock And Pigtail, EFI Only
FSC40110
340 LPH In-Tank Pump, Compatible With E85 Only, Supports Up to 1,000 HP, Includes Filter Sock And Pigtail, EFI Only
FSC47008*
FSC47009
FSC48008*
FSC48009
Fuel Tank With Notched Corners & 340 LPH Pump
Fuel Tank & 340 LPH Pump
Fuel Tank With Notched Corners & 440 LPH Pump
Fuel Tank & 440 LPH Pump
FSC47012 Fuel Tank & 340 LPH Pump
FSC48012 Fuel Tank & 440 LPH Pump
FSC47014 Fuel Tank & 340 LPH Pump
FSC48014 Fuel Tank & 440 LPH Pump
FSC47022 Fuel Tank & 340 LPH Pump
FSC48022 Fuel Tank & 440 LPH Pump
176
* Signifies tank with notched front corners. 2021 HOT ROD AND EARLY MUSCLE
