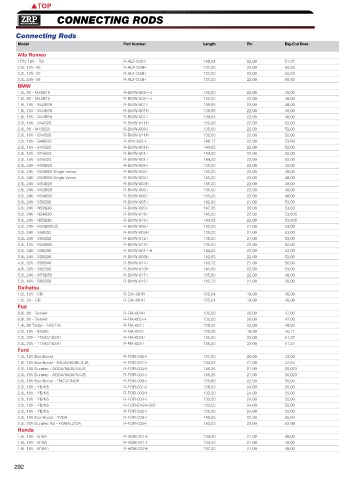

CONNECTING RODS CONNECTING RODS

Connecting Rods Connecting Rods
Model Part Number Length Pin Big-End Bore Big-End Width Gram Weight Bolt Size Series Shape Additional Info
Alfa Romeo
1750 16V - Tbi R-ALF-005-I 148,04 22,00 51,37 21,94 498 3/8" Standard I-Beam
2,5L 12V- V6 R-ALF-004H 131,00 22,00 55,50 24,80 478 3/8" Standard H-Beam
3,0L 12V- V6 R-ALF-004H 131,00 22,00 55,50 24,80 478 3/8" Standard H-Beam
3,0L 24V- V6 R-ALF-004H 131,00 22,00 55,50 24,80 478 3/8" Standard H-Beam
BMW
1,6L 8V - M40B16 R-BMW-002-I-4 140,00 22,00 48,00 21,90 498 3/8" Standard I-Beam
1,6L 8V - M43B16 R-BMW-002-I-4 140,00 22,00 48,00 21,90 498 3/8" Standard I-Beam
1,8L 16V - M42B18 R-BMW-007-I 139,95 22,00 48,00 21,97 492 3/8" Standard I-Beam
1,9L 16V - M44B19 R-BMW-007H 139,95 22,00 48,00 21,97 485 3/8" Standard H-Beam
1,9L 16V - M44B19 R-BMW-007-I 139,95 22,00 48,00 21,97 492 3/8" Standard I-Beam
2,0L 16V - S14B20 R-BMW-011H 150,00 22,00 52,00 23,90 551 3/8" Standard H-Beam
2,0L 8V - M10B20 R-BMW-008-I 135,00 22,00 52,00 23,90 601 3/8" Standard I-Beam
2,0L 16V - S14B20 R-BMW-011H 150,00 22,00 52,00 23,90 494 3/8" Standard H-Beam
2,0L 16V - B48B20 R-MIN-003-I 148.17 22.00 53.60 23.90 596 3/8" Standard I-Beam Tapered Pin End
2,3L 16V - S14B23 R-BMW-001H 144,00 22,00 52,00 23,90 566 3/8" Standard H-Beam
2,3L 16V - S14B23 R-BMW-001-I 144,00 22,00 52,00 23,90 566 3/8" Standard I-Beam
2,5L 16V - S14B25 R-BMW-001-I 144,00 22,00 52,00 23,90 499 3/8" Standard I-Beam
2,5L 24V - M50B25 R-BMW-006-I 135,00 22,00 48,00 21,90 498 3/8" Standard I-Beam
2,5L 24V - M50B25 Single Vanos R-BMW-002-I 140,00 22,00 48,00 21,90 498 3/8" Standard I-Beam
2,5L 24V - M52B25 Single Vanos R-BMW-002-I 140,00 22,00 48,00 21,90 544 3/8" Standard I-Beam
2,5L 24V - M54B25 R-BMW-003H 145,00 22,00 48,00 21,90 499 3/8" Standard H-Beam
2,8L 24V - M52B28 R-BMW-006-I 135,00 22,00 48,00 21,90 499 3/8" Standard I-Beam
3,0L 24V - M54B30 R-BMW-006-I 135,00 22,00 48,00 21,90 574 3/8" Standard I-Beam
3,0L 24V - S50B30 R-BMW-005-I 142,00 21,00 53,00 21,90 450 3/8" Standard I-Beam
3,0L 24V - N52B30 R-BMW-020-I 147.35 20.00 53,63 20.90 488 3/8" Standard I-Beam Non-Tapered Pin End / Straight PE
3,0L 24V - N54B30 R-BMW-018-I 145.00 22.00 53,635 20.88 487 3/8" Standard I-Beam Non-Tapered Pin End / Straight PE
3,0L 24V - N55B30 R-BMW-019-I 144.35 22.00 53,635 20.88 499 3/8" Standard I-Beam Non-Tapered Pin End / Straight PE
3,2L 24V - M50B32US R-BMW-006-I 142,00 21,00 53,00 21,90 550 3/8" Standard I-Beam
3,2L 24V - S50B32 R-BMW-004H 139,00 21,00 53,00 21,90 502 3/8" Standard H-Beam
3,2L 24V - S54B32 R-BMW-012-I 139,00 21,00 53,00 19,91 547 3/8" Standard I-Beam
3,5L 12V - M30B35 R-BMW-013-I 135,00 22,00 52,00 23,90 566 3/8" Standard I-Beam
3,5L 24V - S38B36 R-BMW-001-I-6 144,00 22,00 52,00 23,90 535 3/8" Standard I-Beam
3,8L 24V - S38B38 R-BMW-009H 142,50 22,00 52,00 24,00 499 3/8" Standard H-Beam
4,0L 32V - S65B40 R-BMW-014-I 140,72 21,00 56,00 18,45 548 3/8" Standard I-Beam
4,9L 32V - S62B50 R-BMW-010H 141,50 22,00 53,00 20,90 499 3/8" Standard H-Beam
5,0L 24V - M70B50 R-BMW-017-I 135,00 22,00 48,00 21,90 499 3/8" Standard I-Beam
5,0L 40V - S85B50 R-BMW-015-I 140,72 21,00 56,00 18,45 499 3/8" Standard I-Beam
Daihatsu
1,0L 12V - CB R-DAI-001H 125,04 19,00 46,08 24,80 387 5/16" Standard H-Beam
1,0L 6V - CB R-DAI-001H 125,04 19,00 46,08 24,80 387 5/16" Standard H-Beam
Fiat
0,9L 8V - TwinAir R-FIA-004H 120,00 20,00 47,00 24,70 340 5/16" Standard H-Beam Aluminum – silicon-bronze bushings
0,9L 8V - TwinAir R-FIA-005-H 130,00 20,00 47,00 24,65 361 5/16" Standard H-Beam AMPCO 18 bushings
1,4L 8V Turbo - 146/176 R-FIA-001-I 128,52 22,00 48,63 25,40 520 3/8" Standard I-Beam Aluminum – silicon-bronze bushings
2,0L 16V - 836A3 R-FIA-003-I 129,00 18,00 45,11 21,70 406 5/16" Standard I-Beam Tapered Pin End / Also fits OEM pistons / AMPCO 18 bushings
2,0L 20V - 175A3/182A1 R-FIA-002H 145,00 22,00 51,37 21,95 533 3/8" Standard H-Beam Aluminum – silicon-bronze bushings
2,0L 20V - 175A3/182A1 R-FIA-002-I 145,00 22,00 51,37 21,95 566 3/8" Standard I-Beam AMPCO 18 bushings
Ford
1,0L 12V Eco Boost R-FOR-006-I 137,00 20,00 43,00 19,55 - 5/16" Standard I-Beam Non-Tapered Pin End
1,6L 16V Eco Boost - HXJA/HXJB/JTJA R-FOR-007-I 134,02 21,00 47,04 20,80 - 5/16" Standard I-Beam Tapered Pin End
2,0L 16V Duratec - AODA/N4JA/N4JB R-FOR-004H 146,25 21,00 50,023 21,82 456 3/8" Standard H-Beam
2,0L 16V Duratec - AODA/N4JA/N4JB R-FOR-004-I 146,25 21,00 50,023 21,82 555 3/8" Standard I-Beam
2,0L 16V Eco Boost - TNCD/TNCF R-FOR-008-I 155,86 22,50 55,04 21,84 575 3/8" Heavy Duty I-Beam Non-Tapered Pin End
2,0L 16V - YB/N5 R-FOR-001-I 128,50 24,00 55,00 25,85 588 3/8" Standard I-Beam
2,0L 16V - YB/N5 R-FOR-003H 133,50 24,00 55,00 25,85 457 3/8" Standard H-Beam Longer rods +5,00mm
2,0L 16V - YB/N5 R-FOR-003-I 133,50 24,00 55,00 25,85 - 3/8" Heavy Duty I-Beam Longer rods +5,00mm
2,0L 16V - YB/N5 R-FOR-EN24-003 133,50 24,00 55,00 25,85 542 3/8" Heavy Duty I-Beam Longer rods +5,00mm
2,0L 16V - YB/N5 R-FOR-002-I 136,50 24,00 55,00 25,85 626 3/8" Standard I-Beam Longer rods +8,00mm
2,3L 16V Eco Boost - YVDA R-FOR-009-I 149,25 22,50 55,04 21,84 576 3/8" Heavy Duty I-Beam Non-Tapered Pin End
2,5L 20V Duratec RS - HUBA/JZDA R-FOR-005-I 143,00 23,00 52,98 25,65 551 3/8" Standard I-Beam
Honda
1,6L 16V - B16A R-HON-001H 134,40 21,00 48,00 23,75 482 3/8" Standard H-Beam Recommended usage: Natural Aspirated
1,6L 16V - B16A R-HON-001-I 134,40 21,00 48,00 23,75 537 3/8" Heavy Duty I-Beam Recommended usage: Turbo
1,8L 16V - B18A1 R-HON-002H 137,00 21,00 48,00 23,75 390 5/16" Standard H-Beam Recommended usage: Natural Aspirated
