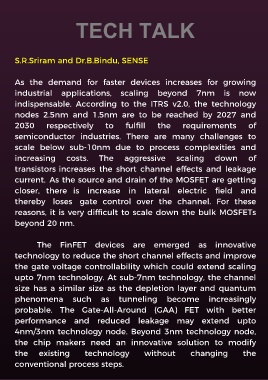

TECH TALK

S.R.Sriram and Dr.B.Bindu, SENSE

As the demand for faster devices increases for growing

industrial applications, scaling beyond 7nm is now

indispensable. According to the ITRS v2.0, the technology

nodes 2.5nm and 1.5nm are to be reached by 2027 and

2030 respectively to fulfill the requirements of

semiconductor industries. There are many challenges to

scale below sub-10nm due to process complexities and

increasing costs. The aggressive scaling down of

transistors increases the short channel effects and leakage

current. As the source and drain of the MOSFET are getting

closer, there is increase in lateral electric field and

thereby loses gate control over the channel. For these

reasons, it is very difficult to scale down the bulk MOSFETs

beyond 20 nm.

The FinFET devices are emerged as innovative

technology to reduce the short channel effects and improve

the gate voltage controllability which could extend scaling

upto 7nm technology. At sub-7nm technology, the channel

size has a similar size as the depletion layer and quantum

phenomena such as tunneling become increasingly

probable. The Gate-All-Around (GAA) FET with better

performance and reduced leakage may extend upto

4nm/3nm technology node. Beyond 3nm technology node,

the chip makers need an innovative solution to modify

the existing technology without changing the

conventional process steps.
