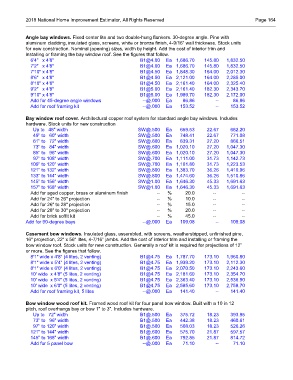

2018 National Home Improvement Estimator, All Rights Reserved Page 164

Angle bay windows. Fixed center lite and two double-hung flankers. 30-degree angle. Pine with
aluminum cladding, insulated glass, screens, white or bronze finish, 4-9/16" wall thickness. Stock units
for new construction. Nominal (opening) sizes, width by height. Add the cost of interior trim and
installing or framing the bay window roof. See the figures that follow.
6'4" x 4'8" B1@4.00 Ea 1,686.70 145.80 1,832.50
7'2" x 4'8" B1@4.00 Ea 1,686.70 145.80 1,832.50
7'10" x 4'8" B1@4.50 Ea 1,848.30 164.00 2,012.30
8'6" x 4'8" B1@4.50 Ea 2,121.00 164.00 2,285.00
8'10" x 4'8" B1@4.50 Ea 2,161.40 164.00 2,325.40
9'2" x 4'8" B1@5.00 Ea 2,161.40 182.30 2,343.70
9'10" x 4'8" B1@5.00 Ea 1,989.70 182.30 2,172.00
Add for 45-degree angle windows --@.000 Ea 86.86 -- 86.86
Add for roof framing kit --@.000 Ea 153.52 -- 153.52

Bay window roof cover. Architectural copper roof system for standard angle bay windows. Includes
hardware. Stock units for new construction
Up to 48" width SW@.500 Ea 659.53 22.67 682.20
49" to 60" width SW@.500 Ea 748.41 22.67 771.08
61" to 72" width SW@.600 Ea 839.31 27.20 866.51
73" to 84" width SW@.600 Ea 1,020.10 27.20 1,047.30
85" to 96" width SW@.600 Ea 1,020.10 27.20 1,047.30
97" to 108" width SW@.700 Ea 1,111.00 31.73 1,142.73
109" to 120" width SW@.700 Ea 1,191.80 31.73 1,223.53
121" to 132" width SW@.800 Ea 1,383.70 36.26 1,419.96
133" to 144" width SW@.800 Ea 1,474.60 36.26 1,510.86
145" to 156" width SW@1.00 Ea 1,646.30 45.33 1,691.63
157" to 168" width SW@1.00 Ea 1,646.30 45.33 1,691.63
Add for aged copper, brass or aluminum finish -- % 20.0 -- --
Add for 24" to 26" projection -- % 10.0 -- --
Add for 26" to 28" projection -- % 15.0 -- --
Add for 28" to 30" projection -- % 20.0 -- --
Add for brick soffit kit -- % 45.0 -- --
Add for 90-degree bays --@.000 Ea 109.08 -- 109.08

Casement bow windows. Insulated glass, assembled, with screens, weatherstripped, unfinished pine,
16" projection, 22" x 56" lites, 4-7/16" jambs. Add the cost of interior trim and installing or framing the
bow window roof. Stock units for new construction. Generally a roof kit is required for projections of 12"
or more. See the figures that follow.
8'1" wide x 4'8" (4 lites, 2 venting) B1@4.75 Ea 1,787.70 173.10 1,960.80
8'1" wide x 5'4" (4 lites, 2 venting) B1@4.75 Ea 1,939.20 173.10 2,112.30
8'1" wide x 6'0" (4 lites, 2 venting) B1@4.75 Ea 2,070.50 173.10 2,243.60
10' wide x 4'8" (5 lites, 2 venting) B1@4.75 Ea 2,181.60 173.10 2,354.70
10' wide x 5'4" (5 lites, 2 venting) B1@4.75 Ea 2,363.40 173.10 2,536.50
10' wide x 6'0" (5 lites, 2 venting) B1@4.75 Ea 2,585.60 173.10 2,758.70
Add for roof framing kit, 5 lites --@.000 Ea 141.40 -- 141.40

Bow window wood roof kit. Framed wood roof kit for four panel bow window. Built with a 10 in 12
pitch, roof overhangs bay or bow 1" to 3". Includes hardware.
Up to 72" width B1@.500 Ea 375.72 18.23 393.95
73" to 96" width B1@.500 Ea 442.38 18.23 460.61
97" to 120" width B1@.500 Ea 508.03 18.23 526.26
121" to 144" width B1@.600 Ea 575.70 21.87 597.57
145" to 168" width B1@.600 Ea 792.85 21.87 814.72
Add for 5 panel bow --@.000 Ea 71.10 -- 71.10
