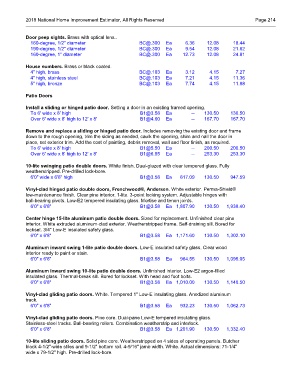

2018 National Home Improvement Estimator, All Rights Reserved Page 214

Door peep sights. Brass with optical lens..
160-degree, 1/2" diameter BC@.300 Ea 6.36 12.08 18.44
190-degree, 1/2" diameter BC@.300 Ea 9.54 12.08 21.62
160-degree, 1" diameter BC@.300 Ea 12.73 12.08 24.81

House numbers. Brass or black coated.
4" high, brass BC@.103 Ea 3.12 4.15 7.27
4" high, stainless steel BC@.103 Ea 7.21 4.15 11.36
5" high, bronze BC@.103 Ea 7.74 4.15 11.88

Patio Doors

Install a sliding or hinged patio door. Setting a door in an existing framed opening.
To 6' wide x 8' high B1@3.58 Ea -- 130.50 130.50
Over 6' wide x 8' high to 12' x 8' B1@4.60 Ea -- 167.70 167.70

Remove and replace a sliding or hinged patio door. Includes removing the existing door and frame
down to the rough opening, trim the siding as needed, caulk the opening, shim and nail the door in
place, set exterior trim. Add the cost of painting, debris removal, wall and floor finish, as required.
To 6' wide x 8' high B1@5.50 Ea -- 200.50 200.50
Over 6' wide x 8' high to 12' x 8' B1@6.95 Ea -- 253.30 253.30

10-lite swinging patio double doors. White finish. Dual-glazed with clear tempered glass. Fully
weatherstripped. Pre-drilled lock-bore.
6'0" wide x 6'8" high B1@3.58 Ea 817.09 130.50 947.59

Vinyl-clad hinged patio double doors, Frenchwood®, Andersen. White exterior. Perma-Shield®
low-maintenance finish. Clear pine interior. 1-lite. 3-point locking system. Adjustable hinges with
ball-bearing pivots. Low-E2 tempered insulating glass. Mortise and tenon joints.
6'0" x 6'8" B1@3.58 Ea 1,807.90 130.50 1,938.40

Center hinge 15-lite aluminum patio double doors. Sized for replacement. Unfinished clear pine
interior. White extruded aluminum-clad exterior. Weatherstripped frame. Self-draining sill. Bored for
lockset. 3/4" Low-E insulated safety glass.
6'0" x 6'8" B1@3.58 Ea 1,171.60 130.50 1,302.10

Aluminum inward swing 1-lite patio double doors. Low-E insulated safety glass. Clear wood
interior ready to paint or stain.
6'0" x 6'8" B1@3.58 Ea 964.55 130.50 1,095.05

Aluminum inward swing 10-lite patio double doors. Unfinished interior. Low-E2 argon-filled
insulated glass. Thermal-break sill. Bored for lockset. With head and foot bolts.
6'0" x 6'8" B1@3.58 Ea 1,010.00 130.50 1,140.50

Vinyl-clad gliding patio doors. White. Tempered 1" Low-E insulating glass. Anodized aluminum
track.
6'0" x 6'8" B1@3.58 Ea 932.23 130.50 1,062.73

Vinyl-clad gliding patio doors. Pine core. Dual-pane Low-E tempered insulating glass.
Stainless-steel tracks. Ball-bearing rollers. Combination weatherstrip and interlock.
6'0" x 6'8" B1@3.58 Ea 1,201.90 130.50 1,332.40

10-lite sliding patio doors. Solid pine core. Weatherstripped on 4 sides of operating panels. Butcher
block 4-1/2"-wide stiles and 9-1/2" bottom rail. 4-9/16" jamb width. White. Actual dimensions: 71-1/4"
wide x 79-1/2" high. Pre-drilled lock-bore.
