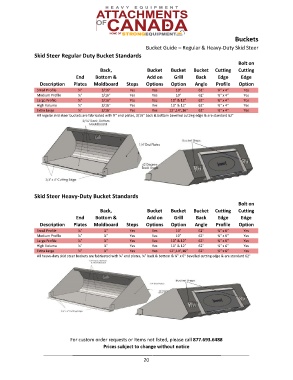

Page 21 - Skid Steer (1)

Buckets

Bucket Guide – Regular & Heavy-Duty Skid Steer
Skid Steer Regular Duty Bucket Standards
Bolt on
Back, Bucket Bucket Bucket Cutting Cutting
End Bottom & Add on Grill Back Edge Edge
Description Plates Moldboard Steps Options Option Angle Profile Option
Small Profile ¼” 3/16” Yes Yes 10” 62° ¾” x 4” Yes
Medium Profile ¼” 3/16” Yes Yes 10” 62° ¾” x 4” Yes
Large Profile ¼” 3/16” Yes Yes 10” & 12” 62° ¾” x 4” Yes
High Volume ¼” 3/16” Yes Yes 10” & 12” 62° ¾” x 4” Yes
Extra Large ¼” 3/16” Yes Yes 12”,14”,16” 62° ¾” x 4” Yes
All regular skid steer buckets are fabricated with ¼” end plates, 3/16” back & bottom bevelled cutting edge & are standard 62°

Skid Steer Heavy-Duty Bucket Standards
Bolt on
Back, Bucket Bucket Bucket Cutting Cutting
End Bottom & Add on Grill Back Edge Edge
Description Plates Moldboard Steps Options Option Angle Profile Option
Small Profile ¼” ¼” Yes Yes 10” 62° ¾” x 6” Yes
Medium Profile ¼” ¼” Yes Yes 10” 62° ¾” x 6” Yes
Large Profile ¼” ¼” Yes Yes 10” & 12” 62° ¾” x 6” Yes
High Volume ¼” ¼” Yes Yes 10” & 12” 62° ¾” x 6” Yes
Extra Large ¼” ¼” Yes Yes 12”,14”,16” 62° ¾” x 6” Yes
All heavy-duty skid steer buckets are fabricated with ¼” end plates, ¼” back & bottom & ¾” x 6” bevelled cutting edge & are standard 62°

For custom order requests or items not listed, please call 877.693.6488
Prices subject to change without notice

20
