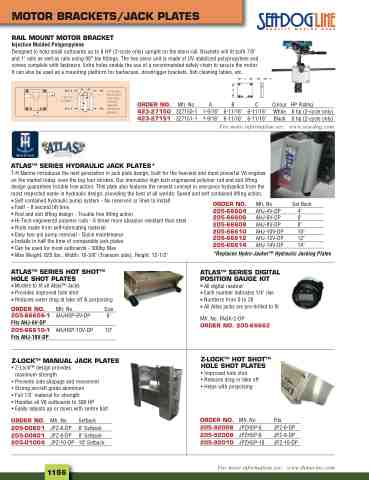

Page 1188 - 2025 Parts & Accessories Catalogue

MOTOR BRACKETS/JACK PLATES
RAIL MOUNT MOTOR BRACKET
Injection Molded Polypropylene
Designed to hold small outboards up to 8 HP (2-cycle only) upright on the stern rail. Brackets will fit both 7/8" and 1" rails as well as rails using 90° tee fittings. The two piece unit is made of UV stabilized polypropylene and comes complete with fasteners. Extra holes enable the use of a recommended safety chain to secure the motor. It can also be used as a mounting platform for barbecues, downrigger brackets, fish cleaning tables, etc.
ORDER NO.
423-27150
423-27151
ATLASTM SERIES HYDRAULIC JACK PLATES*
Mfr. No.
327150-1
327151-1
A B
1-9/16" 6-11/16"
1-9/16" 6-11/16"
C
6-11/16"
6-11/16"
Colour HP Rating
White 8 hp (2-cycle only)
Black 8 hp (2-cycle only)
For more information see: www.sea-dog.com
T-H Marine introduces the next generation in jack plate design, built for the heaviest and most powerful V6 engines on the market today, even the big four strokes. Our innovative high tech engineered polymer rod and slot lifting design guarantees trouble free action. This plate also features the newest concept in one-piece hydraulics from the most respected name in hydraulic design, providing the best of all worlds: Speed and self contained lifting action. •Self contained hydraulic pump system - No reservoir or lines to install
•Fast! - 8 second lift time •Rod and slot lifting design - Trouble free lifting action •Hi-Tech engineered polymer rods - 6 times more abrasion resistant than steel •Rods made from self-lubricating material •Easy two-pin pump removal - Quick maintenance •Installs in half the time of comparable jack plates •Can be used for most outboards - 300hp Max •Max Weight: 625 lbs., Width: 16-3/8" (Transom side), Height: 12-1/2"
ATLASTM SERIES HOT SHOTTM HOLE SHOT PLATES •Models to fit all AtlasTM Jacks •Provides improved hole shot
•Reduces water drag at take off & porpoising
ORDER NO. Mfr. No. Size
205-66606-1 AHJHSP-6V-DP 6" Fits AHJ-6V-DP
ORDER NO.
205-66604
205-66606
205-66608
205-66610
205-66612
205-66614
Mfr. No.
AHJ-4V-DP
AHJ-6V-DP
AHJ-8V-DP
AHJ-10V-DP
AHJ-12V-DP
AHJ-14V-DP
Set Back
4"
6"
8"
10"
12"
14"
205-66610-1
Fits AHJ-10V-DP
AHJHSP-10V-DP 10"
*Replaces Hydro-JackerTM Hydraulic Jacking Plates
ATLASTM SERIES DIGITAL POSITION GAUGE KIT • All digital readout • Each number indicates 1/4" rise •Numbers from 0 to 20
•All Atlas jacks are pre-drilled to fit Mfr. No. FAGK-2-DP
ORDER NO. 205-66662
Z-LOCKTM HOT SHOTTM HOLE SHOT PLATES • Improved hole shot • Reduces drag or take off
• Helps with porpoising
ORDER NO. Mfr. No. Fits
205-92006 JPZHSP-6 JPZ-6-DP
205-92008 JPZHSP-8 JPZ-8-DP
205-92010 JPZHSP-10 JPZ-10-DP
Z-LOCKTM MANUAL JACK PLATES
• Z-LockTM design provides maximum strength
• Prevents side slippage and movement • Strong aircraft grade aluminum • Full 1/2" material for strength • Handles all V6 outboards to 300 HP
• Easily adjusts up or down with centre bolt
ORDER NO.
205-00601
205-00801
205-01004
Mfr. No.
JPZ-6-DP
JPZ-8-DP
JPZ-10-DP
Setback
6" Setback
8" Setback
10" Setback
1156
