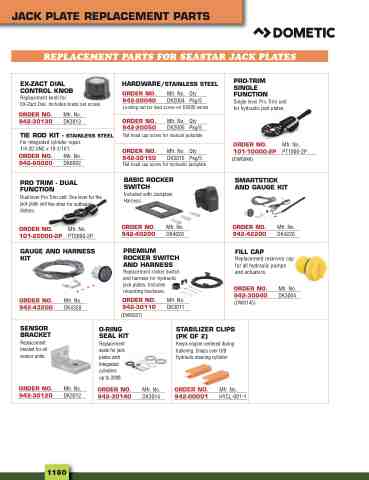

Page 1192 - 2025 Parts & Accessories Catalogue

JACK PLATE REPLACEMENT PARTS
REPLACEMENT PARTS FOR SEASTAR JACK PLATES
EX-ZACT DIAL CONTROL KNOB Replacement knob for EX-Zact Dial. Includes brass set screw.
ORDER NO. Mfr. No.
942-30130 DK3013
HARDWARE/STAINLESS STEEL
ORDER NO. Mfr. No. Qty
942-20040 DK2004 Pkg/5
Locking nut for lead screw on D2000 series
PRO-TRIM SINGLE FUNCTION Single lever Pro Trim unit for hydraulic jack plates.
ORDER NO. Mfr. No. 101-10000-2P PT1000-2P
(DW0046)
ORDER NO. Mfr. No. Qty
942-20050 DK2005 Pkg/5
Flat head cap screw for manual jackplate
TIE ROD KIT - STAINLESS STEEL
For integrated cylinder repair.
1/4-20 UNC x 10-3/16"L ORDER NO. Mfr. No.
942-60020 DK6002
ORDER NO. Mfr. No. Qty
942-30150 DK3015 Pkg/5
Flat head cap screw for hydraulic jackplate
ORDER NO. Mfr. No. 101-20000-2P PT2000-2P
BASIC ROCKER SWITCH Included with Jackplate Harness.
ORDER NO. Mfr. No.
942-40200 DK4020
SMARTSTICK AND GAUGE KIT
ORDER NO. Mfr. No.
942-42200 DK4220
GAUGE AND HARNESS KIT
ORDER NO. Mfr. No.
942-43200 DK4320
PREMIUM ROCKER SWITCH AND HARNESS Replacement rocker switch and harness for hydraulic jack plates. Includes mounting hardware.
ORDER NO. Mfr. No.
942-30110 DK3011
(DW0037)
FILL CAP
Replacement reservoir cap for all hydraulic pumps and actuators.
ORDER NO. Mfr. No.
942-30040 DK3004
(DW0145)
SENSOR BRACKET Replacement bracket for all sensor units.
ORDER NO.
942-30120
Mfr. No.
DK3012
O-RING SEAL KIT Replacement seals for jack plates with integrated cylinders
up to 2008.
ORDER NO.
942-30140
Mfr. No.
DK3014
STABILIZER CLIPS (PK OF 2) Keeps engine centered during trailering. Snaps over O/B hydraulic steering cylinder
ORDER NO. Mfr. No.
942-00001 HYCL-001-1
1160
PRO TRIM - DUAL FUNCTION Dual lever Pro Trim unit. One lever for the jack plate and the other for outboard tilt/trim.
