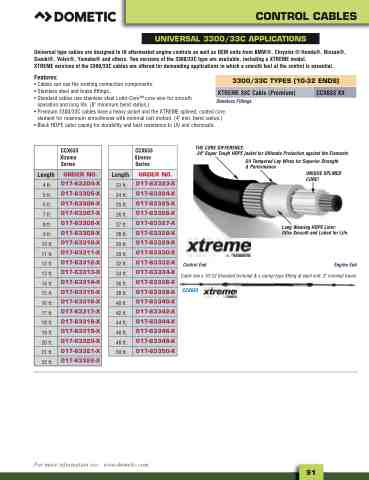

Page 123 - 2025 Parts & Accessories Catalogue

CONTROL CABLES
UNIVERSAL 3300/33C APPLICATIONS
Universal type cables are designed to fit aftermarket engine controls as well as OEM units from BMW®, Chrysler,® Honda®, Nissan®, Suzuki®, Volvo®, Yamaha® and others. Two versions of the 3300/33C type are available, including a XTREME model. XTREME versions of the 3300/33C cables are offered for demanding applications in which a smooth feel at the control is essential.
Features:
• Cables can use the existing connection components. • Stainless steel and brass fittings. • Standard cables use stainless steel Lubri-CoreTM core wire for smooth
3300/33C TYPES (10-32 ENDS)
XTREME 33C Cable (Premium)
Stainless Fittings
CCX633 XX
operation and long life. (8" minimum bend radius.) • Premium 3300/33C cables have a heavy jacket and the XTREME splined, coated core
element for maximum smoothness with minimal lost motion. (4" min. bend radius.) • Black HDPE outer casing for durability and best resistance to UV and chemicals.
CCX633 Xtreme Series
ORDER NO. 017-63304-X 017-63305-X 017-63306-X 017-63307-X 017-63308-X 017-63309-X 017-63310-X 017-63311-X 017-63312-X 017-63313-X 017-63314-X 017-63315-X 017-63316-X 017-63317-X 017-63318-X 017-63319-X 017-63320-X 017-63321-X 017-63322-X
CCX633 Xtreme Series
Length ORDER NO.
THE CORE DIFFERENCE: .34" Super Tough HDPE jacket for Ultimate Protection against the Elements
Length
4 ft. 5 ft. 6 ft. 7 ft. 8 ft. 9 ft. 10 ft. 11 ft. 12 ft. 13 ft. 14 ft. 15 ft. 16 ft. 17 ft. 18 ft. 19 ft. 20 ft. 21 ft. 22 ft.
23 ft. 24 ft. 25 ft. 26 ft. 27 ft. 28 ft. 29 ft. 30 ft. 32 ft. 34 ft. 36 ft. 38 ft. 40 ft. 42 ft. 44 ft. 46 ft. 48 ft. 50 ft.
017-63323-X 017-63324-X 017-63325-X 017-63326-X 017-63327-X 017-63328-X 017-63329-X 017-63330-X 017-63332-X 017-63334-X 017-63336-X 017-63338-X 017-63340-X 017-63342-X 017-63344-X 017-63346-X 017-63348-X 017-63350-X
Control End
Oil Tempered Lay Wires for Superior Strength & Performance
UNIQUE SPLINED CORE!
Long Wearing HDPE Liner: Ultra Smooth and Lubed for Life.
Engine End
Cable has a 10-32 threaded terminal & a clamp-type fitting at each end. 3" nominal travel.
CCX633
For more information see: www.dometic.com
91
