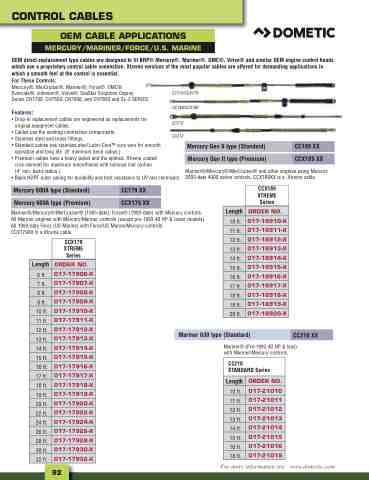

Page 124 - 2025 Parts & Accessories Catalogue

CONTROL CABLES
OEM CABLE APPLICATIONS
MERCURY/MARINER/FORCE/U.S. MARINE
OEM direct-replacement type cables are designed to fit BRP® Mercury®, Mariner®, OMC®, Volvo® and similar OEM engine control heads which use a proprietary control cable connection. Xtreme versions of the most popular cables are offered for demanding applications in which a smooth feel at the control is essential. For These Controls:
Mercury®, MerCruiser®, Mariner®, Force®, OMC®, Evinrude®, Johnson®, Volvo®, SeaStar Solutions Osprey Series CH1700, CH7500, CH7600, and CH7800 and SL-3 SERIES.
Features: • Drop-in replacement cables are engineered as replacements for
original equipment cables. • Cables use the existing connection components. • Stainless steel and brass fittings. • Standard cables use stainless steel Lubri-CoreTM core wire for smooth
operation and long life. (8" minimum bend radius.) • Premium cables have a heavy jacket and the splined, Xtreme coated
core element for maximum smoothness with minimal lost motion.
CC179/CCX179
CC189/CCX189
CC210 CC213
Mercury Gen II type (Standard)
Mercury Gen II type (Premium)
CC189 XX
CCX189 XX
(4" min. bend radius.) • Black HDPE outer casing for durability and best resistance to UV and chemicals.
Mariner®/Mercury®/MerCruiser® and other engines using Mercury 2003-date 4000 series controls. CCX189XX is a Xtreme cable.
CCX189 XTREME Series
Length ORDER NO.
Mercury 600A type (Standard) Mercury 600A type (Premium)
CC179 XX CCX179 XX
Mariner®/Mercury®/MerCruiser® (1965-date); Force® (1993-date) with Mercury controls. All Mariner engines with Mercury/Mariner controls (except pre-1993 40 HP & lower models). All 1993-date Force (US Marine) with Force/US Marine/Mercury controls. CCX179XX is a Xtreme cable.
CCX179 XTREME Series
ORDER NO. 017-17906-X 017-17907-X 017-17908-X 017-17909-X 017-17910-X 017-17911-X 017-17912-X 017-17913-X 017-17914-X 017-17915-X 017-17916-X 017-17917-X 017-17918-X 017-17919-X 017-17920-X 017-17922-X 017-17924-X 017-17926-X 017-17928-X 017-17930-X 017-17932-X
10 ft. 11 ft. 12 ft. 13 ft. 14 ft. 15 ft. 16 ft. 17 ft. 18 ft. 19 ft. 20 ft.
017-18910-X 017-18911-X 017-18912-X 017-18913-X 017-18914-X 017-18915-X 017-18916-X 017-18917-X 017-18918-X 017-18919-X 017-18920-X
Length
6 ft. 7 ft. 8 ft. 9 ft. 10 ft. 11 ft. 12 ft. 13 ft. 14 ft. 15 ft. 16 ft. 17 ft. 18 ft. 19 ft. 20 ft. 22 ft. 24 ft. 26 ft. 28 ft. 30 ft. 32 ft.
Mariner 630 type (Standard)
CC210 XX
Mariner® (Pre-1993 40 HP & less) with Mariner/Mercury controls.
CC210 STANDARD Series
Length
10 ft. 11 ft. 12 ft. 13 ft. 14 ft. 15 ft. 16 ft. 18 ft.
ORDER NO. 017-21010 017-21011 017-21012 017-21013 017-21014 017-21015 017-21016 017-21018
92
For more information see: www.dometic.com
