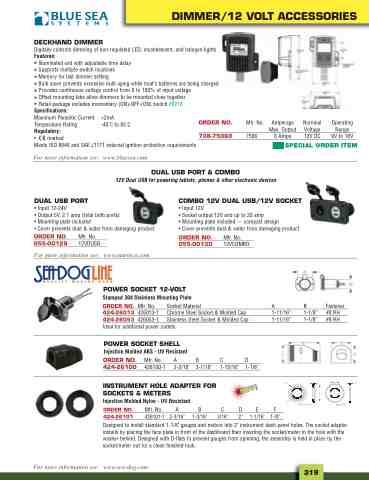

Page 351 - 2025 Parts & Accessories Catalogue

DIMMER/12 VOLT ACCESSORIES
DECKHAND DIMMER
Digitally controls dimming of non-regulated LED, incandescent, and halogen lights
Features:
• Illuminated exit with adjustable time delay • Supports multiple switch locations • Memory for last dimmer setting • Bulb saver prevents excessive bulb aging while boat’s batteries are being charged • Provides continuous voltage control from 0 to 100% of input voltage
• Offset mounting tabs allow dimmers to be mounted close together • Retail package includes momentary (ON)-OFF-(ON) switch #8216 Specifications: Maximum Parasitic Current
Temperature Rating
Regulatory:
• marked Meets ISO 8846 and SAE J1171 external ignition protection requirements
SPECIAL ORDER ITEM
For more information see: www.bluesea.com
<2mA -40˚C to 85˚C
ORDER NO. 738-75060
Mfr. No. 7506
Amperage Max. Output 6 Amps
Nominal Voltage 12V DC
Operating Range 9V to 16V
DUAL USB PORT & COMBO
12V Dual USB for powering tablets, phones & other electronic devices
DUAL USB PORT
• Input 12-24V • Output 5V, 2.1 amp (total both ports) • Mounting plate included • Cover prevents dust & water from damaging product
ORDER NO. Mfr. No. 055-00129 12VDUSB
For more information see: www.marinco.com
COMBO 12V DUAL USB/12V SOCKET
• Input 12V • Socket output 12V and up to 20 amp • Mounting plate included – compact design • Cover prevents dust & water from damaging product
POWER SOCKET 12-VOLT
Stamped 304 Stainless Mounting Plate
ORDER NO. Mfr. No. 424-26013 426013-1 424-26053 426053-1 Ideal for additional power outlets
A B Fastener 1-11/16” 1-1/8” #8RH 1-11/16” 1-1/8” #8RH
ACEF D
ORDER NO. Mfr. No. 055-00130 12VCOMBO
Socket Material ChromeSteelSocket&MoldedCap StainlessSteelSocket&MoldedCap
POWER SOCKET SHELL
Injection Molded ABS - UV Resistant
ORDER NO. Mfr. No. A B C D 424-26100 426100-1 2-3/16" 3-7/16" 1-15/16" 1-1/8"
INSTRUMENT HOLE ADAPTER FOR SOCKETS & METERS Injection Molded Nylon - UV Resistant
ORDERNO. Mfr.No. A B C D E F 424-26101 426101-1 2-3/16" 1-3/16" 3/16" 2" 1-1/16" 1-/8"
B
FACE PLATE
WASHER
Designed to install standard 1-1/8" gauges and meters into 2" instrument dash panel holes. The socket adapter installs by placing the face plate in front of the dashboard then inserting the socket/meter in the hole with the washer behind. Designed with D-flats to prevent gauges from spinning, the assembly is held in place by the socket/meter nut for a clean finished look.
For more information see: www.sea-dog.com
319
