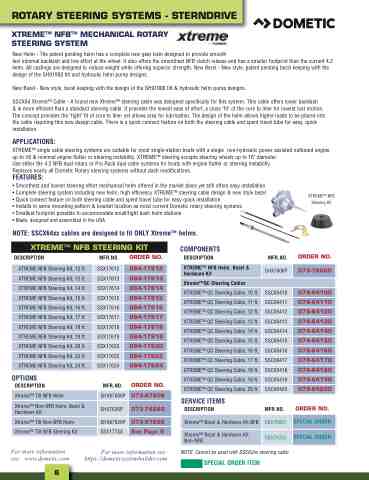

Page 40 - 2025 Parts & Accessories Catalogue

ROTARY STEERING SYSTEMS - STERNDRIVE
XTREMETM NFBTM MECHANICAL ROTARY STEERING SYSTEM
New Helm - The patent pending helm has a complete new gear train designed to provide smooth feel minimal backlash and low effort at the wheel. It also offers the smoothest NFB clutch release and has a smaller footprint than the current 4.2 helm. All castings are designed to reduce weight while offering superior strength. New Bezel - New style, patent pending bezel keeping with the design of the SH91900 tilt and hydraulic helm pump designs.
New Bezel - New style, bezel keeping with the design of the SH91900 tilt & hydraulic helm pump designs.
SSCX64 XtremeTM Cable - A brand new XtremeTM steering cable was designed specifically for this system. This cable offers lower backlash & is more efficient than a standard steering cable. It provides the lowest ease of effort, a close "fit" of the core to liner for lowest lost motion. The concept provides the "tight" fit of core to liner yet allows area for lubrication. The design of the helm allows higher loads to be placed into the cable requiring this new design cable. There is a quick connect feature on both the steering cable and spent travel tube for easy, quick installation.
APPLICATIONS:
XTREMETM single cable steering systems are suitable for most single-station boats with a single non-hydraulic power assisted outboard engine up to V6 & minimal engine flutter or steering instability. XTREMETM steering accepts steering wheels up to 16" diameter. Use either the 4.2 NFB dual rotary or Pro Rack dual cable systems for boats with engine flutter or steering instability. Replaces nearly all Dometic Rotary steering systems without dash modifications.
FEATURES:
• Smoothest and lowest steering effort mechanical helm offered in the market place yet still offers easy installation • Complete steering system including new helm, high efficiency XTREMETM steering cable design & new style bezel • Quick connect feature on both steering cable and spent travel tube for easy quick installation • Installs in same mounting pattern & bracket location as most current Dometic rotary steering systems
• Smallest footprint possible to accommodate small/tight dash helm stations • Made, designed and assembled in the USA.
NOTE: SSCX64xx cables are designed to fit ONLY XtremeTM helms.
XTREMETM NFB Steering Kit
ORDER NO. 073-76060
078-64100 078-64110 078-64120 078-64130 078-64140 078-64150 078-64160 078-64170 078-64180 078-64190 078-64200
ORDER NO.
SPECIAL ORDER SPECIAL ORDER
XTREMETM NFB STEERING KIT
COMPONENTS
DESCRIPTION MFR.NO.
DESCRIPTION
XTREME NFB Steering Kit, 12 ft. XTREME NFB Steering Kit, 13 ft. XTREME NFB Steering Kit, 14 ft. XTREME NFB Steering Kit, 15 ft. XTREME NFB Steering Kit, 16 ft. XTREME NFB Steering Kit, 17 ft. XTREME NFB Steering Kit, 18 ft. XTREME NFB Steering Kit, 19 ft. XTREME NFB Steering Kit, 20 ft. XTREME NFB Steering Kit, 22 ft. XTREME NFB Steering Kit, 24 ft.
OPTIONS
MFR.NO.
SSX17612 SSX17613 SSX17614 SSX17615 SSX17616 SSX17617 SSX17618 SSX17619 SSX17620 SSX17622 SSX17624
ORDER NO.
084-17612 084-17613 084-17614 084-17615 084-17616 084-17617 084-17618 084-17619 084-17620 084-17622 084-17624
ORDER NO. 073-97606
073-76260
073-97626 See Page 9
XTREMETM NFB Helm, Bezel & Hardware Kit
XtremeTMQC Steering Cables
XTREMETM QC Steering Cable, 10 ft. XTREMETM QC Steering Cable, 11 ft. XTREMETM QC Steering Cable, 12 ft. XTREMETM QC Steering Cable, 13 ft. XTREMETM QC Steering Cable, 14 ft. XTREMETM QC Steering Cable, 15 ft. XTREMETM QC Steering Cable, 16 ft. XTREMETM QC Steering Cable, 17 ft. XTREMETM QC Steering Cable, 18 ft. XTREMETM QC Steering Cable, 19 ft. XTREMETM QC Steering Cable, 20 ft.
SERVICE ITEMS
DESCRIPTION
XtremeTM Bezel & Hardware Kit NFB
XtremeTM Bezel & Hardware Kit Non-NFB
SHX7606P
SSCX6410 SSCX6411 SSCX6412 SSCX6413 SSCX6414 SSCX6415 SSCX6416 SSCX6417 SSCX6418 SSCX6419 SSCX6420
MFR.NO.
SBX76061
SBX76261
DESCRIPTION MFR.NO.
XtremeTM Tilt NFB Helm
XtremeTM Non-NFB Helm, Bezel & Hardware Kit
XtremeTM Tilt Non-NFB Helm XtremeTM Tilt NFB Steering Kit
For more information see: www.dometic.com
SHX97606P SHX7626P
SHX97626P SSX177XX
For more information see: https://dometicsystembuilder.com
NOTE: Cannot be used with SSC62xx steering cable
SPECIAL ORDER ITEM
