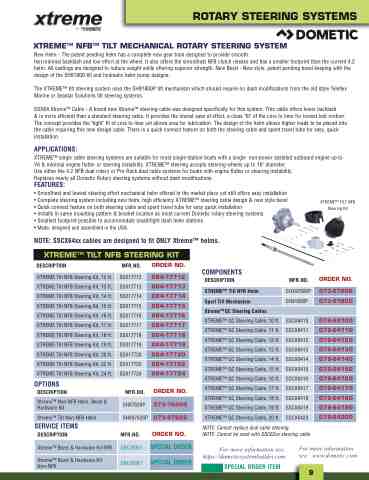

Page 41 - 2025 Parts & Accessories Catalogue

ROTARY STEERING SYSTEMS
XTREMETM NFBTM TILT MECHANICAL ROTARY STEERING SYSTEM
New Helm - The patent pending helm has a complete new gear train designed to provide smooth feel minimal backlash and low effort at the wheel. It also offers the smoothest NFB clutch release and has a smaller footprint than the current 4.2 helm. All castings are designed to reduce weight while offering superior strength. New Bezel - New style, patent pending bezel keeping with the design of the SH91900 tilt and hydraulic helm pump designs.
The XTREMETM tilt steering system uses the SH91800P tilt mechanism which should require no dash modifications from the old style Teleflex Marine or Seastar Solutions tilt steering systems.
SSX64 XtremeTM Cable - A brand new XtremeTM steering cable was designed specifically for this system. This cable offers lower backlash & is more efficient than a standard steering cable. It provides the lowest ease of effort, a close "fit" of the core to liner for lowest lost motion. The concept provides the "tight" fit of core to liner yet allows area for lubrication. The design of the helm allows higher loads to be placed into the cable requiring this new design cable. There is a quick connect feature on both the steering cable and spent travel tube for easy, quick installation.
APPLICATIONS:
XTREMETM single cable steering systems are suitable for most single-station boats with a single non-power assisted outboard engine up to V6 & minimal engine flutter or steering instability. XTREMETM steering accepts steering wheels up to 16" diameter. Use either the 4.2 NFB dual rotary or Pro Rack dual cable systems for boats with engine flutter or steering instability. Replaces nearly all Dometic Rotary steering systems without dash modifications.
FEATURES:
• Smoothest and lowest steering effort mechanical helm offered in the market place yet still offers easy installation • Complete steering system including new helm, high efficiency XTREMETM steering cable design & new style bezel • Quick connect feature on both steering cable and spent travel tube for easy quick installation • Installs in same mounting pattern & bracket location as most current Dometic rotary steering systems
• Smallest footprint possible to accommodate small/tight dash helm stations • Made, designed and assembled in the USA.
NOTE: SSCX64xx cables are designed to fit ONLY XtremeTM helms.
XTREMETM TILT NFB Steering Kit
ORDER NO.
073-97606 073-91800
078-64100 078-64110 078-64120 078-64130 078-64140 078-64150 078-64160 078-64170 078-64180 078-64190 078-64200
XTREMETM TILT NFB STEERING KIT
DESCRIPTION
XTREME Tilt NFB Steering Kit, 12 ft. XTREME Tilt NFB Steering Kit, 13 ft. XTREME Tilt NFB Steering Kit, 14 ft. XTREME Tilt NFB Steering Kit, 15 ft. XTREME Tilt NFB Steering Kit, 16 ft. XTREME Tilt NFB Steering Kit, 17 ft. XTREME Tilt NFB Steering Kit, 18 ft. XTREME Tilt NFB Steering Kit, 19 ft. XTREME Tilt NFB Steering Kit, 20 ft. XTREME Tilt NFB Steering Kit, 22 ft. XTREME Tilt NFB Steering Kit, 24 ft.
OPTIONS
DESCRIPTION
XtremeTM Non-NFB Helm, Bezel & Hardware Kit
XtremeTM Tilt Non-NFB Helm
SERVICE ITEMS
DESCRIPTION
XtremeTM Bezel & Hardware Kit NFB
XtremeTM Bezel & Hardware Kit Non-NFB
ORDER NO.
084-17712 084-17713 084-17714 084-17715 084-17716 084-17717 084-17718 084-17719 084-17720 084-17722 084-17724
ORDER NO.
MFR.NO.
SSX17712 SSX17713 SSX17714 SSX17715 SSX17716 SSX17717 SSX17718 SSX17719 SSX17720 SSX17722 SSX17724
MFR.NO.
073-76260 SHX97626P 073-97626
COMPONENTS
DESCRIPTION XTREMETM Tilt NFB Helm
Sport Tilt Mechanism XtremeTMQC Steering Cables XTREMETM QC Steering Cable, 10 ft. XTREMETM QC Steering Cable, 11 ft. XTREMETM QC Steering Cable, 12 ft. XTREMETM QC Steering Cable, 13 ft. XTREMETM QC Steering Cable, 14 ft. XTREMETM QC Steering Cable, 15 ft. XTREMETM QC Steering Cable, 16 ft. XTREMETM QC Steering Cable, 17 ft. XTREMETM QC Steering Cable, 18 ft. XTREMETM QC Steering Cable, 19 ft. XTREMETM QC Steering Cable, 20 ft.
MFR.NO.
SHX97606P SH91800P
SSCX6410 SSCX6411 SSCX6412 SSCX6413 SSCX6414 SSCX6415 SSCX6416 SSCX6417 SSCX6418 SSCX6419 SSCX6420
SHX7626P
MFR.NO.
SBX76061 SBX76261
ORDER NO.
SPECIAL ORDER SPECIAL ORDER
NOTE: Cannot replace dual cable steering NOTE: Cannot be used with SSC62xx steering cable
For more information see: https://dometicsystembuilder.com
SPECIAL ORDER ITEM
For more information see: www.dometic.com
