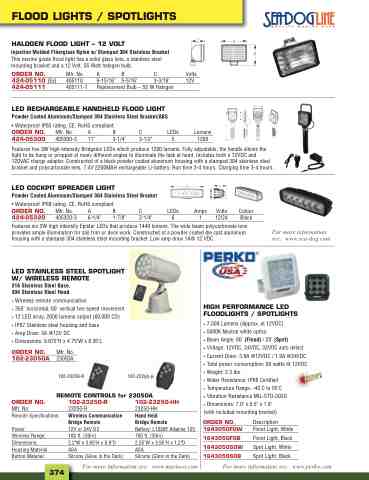

Page 406 - 2025 Parts & Accessories Catalogue

FLOOD LIGHTS / SPOTLIGHTS
HALOGEN FLOOD LIGHT -- 12 VOLT
Injection Molded Fiberglass Nylon w/ Stamped 304 Stainless Bracket
This marine grade flood light has a solid glass lens, a stainless steel mounting bracket and a 12 Volt, 55 Watt halogen bulb.
ORDER NO. 424-05110 (Ea) 424-05111
Mfr. No. 405110 405111-1
A B C 6-15/16" 5-5/16" 3-3/16" Replacement Bulb – 55 W Halogen
Volts 12V
Lumens 1200
LED RECHARGEABLE HANDHELD FLOOD LIGHT
Powder Coated Aluminum/Stamped 304 Stainless Steel Bracket/ABS
• Waterproof IP65 rating. CE, RoHS compliant. ORDER NO. Mfr. No. A B C LEDs 424-05300 405300-3 11" 3-1/4" 3-1/2" 5
Features five 3W high intensity Bridgelux LEDs which produce 1200 lumens. Fully adjustable, the handle allows the light to be hung or propped at many different angles to illuminate the task at hand. Includes both a 12VDC and 120VAC charge adapter. Constructed of a black powder coated aluminum housing with a stamped 304 stainless steel bracket and polycarbonate lens. 7.4V 2200MAH rechargeable Li-battery. Run time 3-4 hours. Charging time 3-4 hours.
LED COCKPIT SPREADER LIGHT
Powder Coated Aluminum/Stamped 304 Stainless Steel Bracket
• Waterproof IP68 rating. CE, RoHS compliant. ORDER NO. Mfr. No. A B C LEDs Amps Volts Colour 424-05320 405320-3 6-1/4" 1-7/8" 2-1/4" 6 1 12/24 Black
Features six 3W high intensity Epistar LEDs that produce 1440 lumens. The wide beam polycarbonate lens provides ample illumination for sail trim or deck work. Constructed of a powder coated die cast aluminum housing with a stamped 304 stainless steel mounting bracket. Low amp draw 1A@ 12 VDC.
LED STAINLESS STEEL SPOTLIGHT W/ WIRELESS REMOTE 316 Stainless Steel Base, 304 Stainless Steel Head
• Wireless remote communication • 350˚ horizontal, 60˚ vertical two speed movement • 12 LED array, 2600 lumens output (60,000 CD) • IP67 Stainless steel housing and base • Amp Draw: 3A @12V DC • Dimensions: 9.875"H x 4.75"W x 8.35"L
ORDER NO. Mfr. No. 102-23050A 23050A
For more information see: www.sea-dog.com
REMOTE CONTROLS for 23050A
HIGH PERFORMANCE LED FLOODLIGHTS / SPOTLIGHTS
• 7,500 Lumens (Approx. at 12VDC) • 5000K Neutral white optics • Beam Angle: 80˚ (Flood) / 20˚ (Spot) • Voltage: 12VDC, 24VDC, 32VDC auto detect • Current Draw: 3.8A @12VDC / 1.9A @24VDC • Total power consumption: 50 watts @ 12VDC • Weight: 2.3 lbs. • Water Resistance: IP68 Certified • Temperature Range: -40˚C to 55˚C • Vibration Resistance MIL-STD-202G • Dimensions: 7.0" x 5.5" x 1.9" (with included mounting bracket)
ORDER NO.
Mfr. No Remote Specifications:
Power Wireless Range: Dimensions: Housing Material Button Material:
102-23250-R
23250-R
Wireless Communication Bridge Remote 12V or 24V DC 100 ft. (30m)
2.2"W x 3.65"H x 0.9"D ASA Silcone (Glow in the Dark)
102-23250-HH
23250-HH
Hand Held Bridge Remote Battery: L1028F Alkaline 12V 100 ft. (30m) 2.25"W x 3.95"H x 1.2"D ASA Silcone (Glow in the Dark)
ORDER NO. 1643050F0W
1643050F0B 1643050S0W 1643050S0B
Description Flood Light, White
Flood Light, Black Spot Light, White Spot Light, Black
374
For more information see: www.marinco.com
For more information see: www.perko.com
102-23250-R 102-23250-HH
