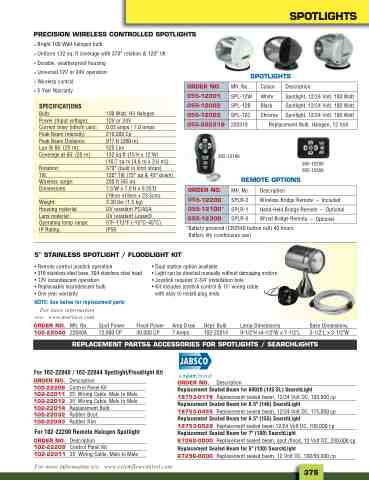

Page 407 - 2025 Parts & Accessories Catalogue

SPOTLIGHTS
PRECISION WIRELESS CONTROLLED SPOTLIGHTS
• Bright 100 Watt halogen bulb • Uniform 132 sq. ft coverage with 370° rotation & 120° tilt • Durable, weatherproof housing • Universal 12V or 24V operation • Wireless control • 5 Year Warranty
5" STAINLESS SPOTLIGHT / FLOODLIGHT KIT
055-12100
SPOTLIGHTS
REMOTE OPTIONS
ORDER NO.
Mfr. No.
Colour
Description
055-12001
SPL-12W
White
Spotlight, 12/24 Volt, 100 Watt
055-12002
SPL-12B
Black
Spotlight, 12/24 Volt, 100 Watt
055-12003
SPL-12C
Chrome
Spotlight, 12/24 Volt, 100 Watt
055-202319
202319
Replacement Bulb, Halogen, 12 Volt
SPECIFICATIONS
Bulb:
Power (Input voltage):
Current draw (idle/in use):
Peak Beam Intensity:
Peak Beam Distance:
Lux @ 66' (25 m):
Coverage at 66' (25 m):
Rotation:
Tilt:
Wireless range:
Dimensions:
Weight:
Housing material:
Lens material:
Operating temp range:
IP Rating:
100 Watt, H3 Halogen
12V or 24V
0.03 amps / 7.0 amps
210,000 Cp
917 ft (280 m)
525 Lux
132 sq ft (15'H x 12'W)
(16.7 sq m [4.6 m x 3.6 m])
370° (built in limit stops)
120° Tilt (75° up & 45° down)
200 ft (65 m)
7.5"W x 7.5"H x 9.25"D
(19cm x19cm x 23.5cm)
3.30 lbs (1.5 kg)
UV resistant PC/ASA
UV resistant Lexan®
5°F–113°F (-15°C–45°C)
IP56
055-12200 055-12300
ORDER NO.
Mfr. No.
Description
055-12200
SPLR-2
Wireless Bridge Remote – Included
055-12100*
SPLR-1
Hand-Held Bridge Remote – Optional
055-12300
SPLR-3
Wired Bridge Remote – Optional
*Battery powered (CR2540 button cell) 40 hours Battery life (continuous use)
• Remote control joystick operation • 316 stainless steel base, 304 stainless steel head • 12V incandescent operation • Replaceable incandescent bulb • One year warranty
NOTE: See below for replacement parts
For more information see: www.marinco.com
ORDER NO. Mfr. No. Spot Power
102-22040 22040A 72,000 CP
• Dual station option available • Light can be directed manually without damaging motors • Joystick requires 2-3/4" installation hole • Kit includes joystick control & 15' wiring cable
with easy to install plug ends
Flood Power
30,000 CP
Amp Draw
7 Amps
Repl. Bulb
102-22014
Lamp Dimensions Base Dimensions
9-1/2"H x4-1/2"W x 7-1/2"L 5-1/2"L x 3-1/2"W
REPLACEMENT PARTS& ACCESSORIES FOR SPOTLIGHTS / SEARCHLIGHTS
For 102-22040 / 102-22044 Spotlight/Floodlight Kit
ORDER NO.
102-22208
102-22011
102-22012
102-22014
102-22032
102-22093
Description
Control Panel Kit
25’ Wiring Cable, Male to Male
35’ Wiring Cable, Male to Male
Replacement Bulb
Rubber Boot
Rubber Rim
ORDER NO. Description
Replacement Sealed Beam for 60020 (135 SL) SearchLight
18753-0178 Replacementsealedbeam,12/24VoltDC,100,000cp
Replacement Sealed Beam for 8.5" (146) SearchLight
18753-0455 Replacementsealedbeam,12/24VoltDC,175,000cp
Replacement Sealed Beam for 6.5" (155) SearchLight
18753-0528 Replacementsealedbeam12/24VoltDC,100,000cp
Replacement Sealed Beam for 7" (180) SearchLight
67262-0000 Replacement sealed beam, spot /flood, 12 Volt DC, 230,000 cp
Replacement Sealed Beam for 5" (130) SearchLight
67296-0000 Replacementsealedbeam,12VoltDC,100/50,000cp
For 102-22200 Remote Halogen Spotlight
ORDER NO. Description
102-22209 Control Panel Kit
102-22011 25’ Wiring Cable, Male to Male
For more information see: www.xylemflowcontrol.com
